Important Options and Accessories

PAC60 Bevel Cutting

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities

PAC 60 - TECHNI Waterjet

Ezy Load Lifter

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Ezy Load 2023

Abrasive Removal System

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Abrasive Removal System

Abrasive Pump & Hopper

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Hopper 500

Multiple Cutting Heads

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Multiple Cutting Heads

Skip & Floating Attachment

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Skip & Float Attachment

Terrain Mapping

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Terrain Mapping

Tech-Vision

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Tech - Vision

Safety Light Curtain

Raise The Bar

Equip your Waterjet Machine with Attachments Designed to Enhance your Cutting Capabilities
Safety Barriers
PAC60™ 5-Axis Head

introducing

PAC60 5-Axis Head

Produce Parts with a True Angel Up to
+/- 60 Degrees

The PAC60™ is capable of producing parts with a true angle of up to +/- 60 degrees, with continuous rotation. That means, regardless of the geometry of the part to be cut, the PAC60™ will produce accurate parts without having to reposition the cutting head, saving time and producing higher quality parts.

what can you do with our

Patented PAC60™ Technology?

Green Bullet Logo - TECHNI Waterjet

Manufacture Higher Quality Parts

in any material direct from your machine bed

Save Time On Secondary Finishing

with in built taper compensation
Green Bullet Logo - TECHNI Waterjet

Produce More Complex Parts

with true angles of up to +/- 60 degrees

Accelerate the Cutting Process

by producing complex geometries without having to reposition the cutting head

Patented Direct Drive Technology

By incorporating patented Direct Drive DC Servo Motor Technology for the 4th & 5th axis, the PAC60™ is capable of positioning accuracy to ± 0.1 degrees, with rapid acceleration and positioning speeds, as well as continuous rotation.

This makes the PAC60™ the fastest, most accurate, 5 axis waterjet cutting head available in abrasive waterjet cutting.

Constant Stand-Off Bevel Cutting

An accurate stand-off is critical to achieving accurate parts when Bevel Cutting.
The PAC60™ incorporates an optional Touch Probe height detection to set a precise stand-off before piercing or to predetermine the flatness of the material and make compensations in the “Z” height, to maintain an accurate stand-off while bevel cutting.

Another option is a non-contact Laser Sensor to perform Precision Terrain Mapping on the surface of the material to be cut. This information is then used to maintain an accurate stand-off distance between the nozzle and the workpiece, resulting in more accurate parts.

Reduced Taper

The PAC60™ operating software incorporates True Cut algorithms database, developed to determine the correct cutting speed to produce a given surface finish in any material of any thickness automatically. TruCut Technology™ combined with the Precision Angle Control feature allows a finished part to be produced with the desired edge angle from +60 to -60 degrees.

This means that the taper typically produced when waterjet cutting is effectively eliminated, giving you “Precision Angle Control” of any part that can be produced on an X-Y abrasive waterjet cutting machine.

Tech – Sense Capabilities

The PAC60™ is also available with Tech-Sense™ to ensure your bevel cutting head is working efficiently and notify the operator if something goes wrong.

When Tech-Sense™ is used in conjunction with Softec™ Mobile Phone Communication, you can receive and reply to text messages from wherever you want. This unique feature makes lights-out operation a reality, something very useful on a Waterjet machine where run times can be hours or days.

Abrasive Removal System with Bag

introducing

Abrasive Removal
System with Bag

Take The Hard Work Out of Tank Cleaning

Designed to take the hard work out of tank cleaning, the abrasive removal system collects used abrasive from the cutting stream via a tray fitted to the bottom of the Waterjet tank.

The abrasive slurry is then pumped to a heavy-duty bin by an abrasive resistant diaphragm pump. The abrasive settles inside the bag while the water is returned to the Waterjet tank.

benefits of the

Abrasive Removal System

Green Bullet Logo - TECHNI Waterjet

Save on time and man-power

by eliminating the lengthy and manual process of cleaning the waterjet tank
Green Bullet Logo - TECHNI Waterjet

Built to Last

the Abrasive Removal System’s heavy-duty design is mounted on a steel frame to ensure a long life span

Green Bullet Logo - TECHNI Waterjet

Reduce Water Usage

by having the removal system clean and separate the abrasive from the water after cutting, so that the water can be recycled

Green Bullet Logo - TECHNI Waterjet

Save Time On Secondary Finishing

within this unit gives your workshop an extra layer of safety when operating your Waterjet machine

VIEW OUR RANGE OF

QUANTUM SPT™ AND QUANTUM® PUMPS
Message Icon - TECHNI Waterjet

SPEAK TO A

WATERJET SPECIALIST
Hopper 500

introducing

Abrasive Pump & Hopper

Experience Higher Machine Efficiency with
Uninterrupted Abrasive Flow

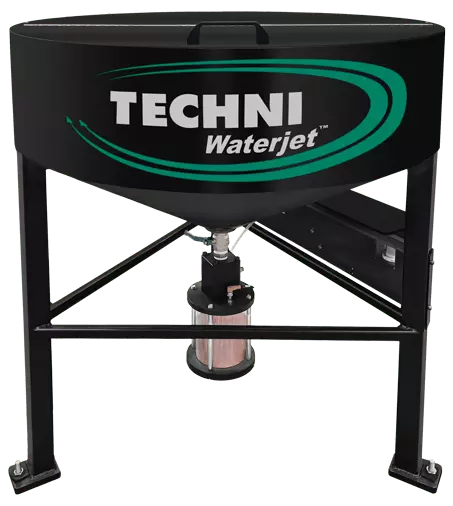

The Abrasive hopper system incorporates a revolutionary design abrasive pump, which eliminates all mechanical moving parts from coming into contact with the abrasive material (Garnet). This ensures uninterrupted abrasive flow to the cutting head for many 1000’s of hours with minimal maintenance.

The hinged lid on the hopper system allows easy access to inspect and fill at any time, without the need to de-pressurize. The clear pump chamber allows a quick visual, to ensure the abrasive is present and flowing correctly.

benefits of the

Abrasive Pump & Hopper

Black Bullet Icon - TECHNI Waterjet

Ease of Loading

due to its height and hinged lid

Black Bullet Icon - TECHNI Waterjet

Minimized Cutting Head Blockages

thanks to the built-in filter screen
Black Bullet Icon - TECHNI Waterjet

Extremely Safe to Operate

as only a very small amount of abrasive requires pressurization
Black Bullet Icon - TECHNI Waterjet

Continuous Operation with No Downtime

as there is no requirement to de-pressurize to refill
Black Bullet Icon - TECHNI Waterjet

Up to 5 Machines Can Run

from a single pump/hopper system increasing production efficiency
Black Bullet Icon - TECHNI Waterjet

Save on Time and Manpower

with minimal maintenance required, as no mechanical moving parts come into contact with the abrasive

two sizes available

500 Kg standard, 2000 Kg optional
500kg
2000kg
Multiple Cutting Heads
Independently mounted cutting heads

Twice the Power
Twice the Speed

With Multiple Cutting Heads
The option of multiple cutting heads gives the TECHNI Waterjet® cutting machine the power and speed to provide the highest level of productivity, in the most demanding production environments.

Techni offers 2 alternatives for Dual Heads.

Option 1 is mounted on an aluminum spreader bar, the cutting heads can be quickly and easily positioned whilst still featuring the unique breakaway head configuration. This feature allows the machine to automatically shut down one of the cutting heads if either one of them comes into contact with a foreign object such a fixing clamp.

Option 2 is Independently mounted cutting heads, which allows for an accurate stand-off to be set and maintained on each cutting head.

The power Z-axis, which allows for easy height adjustment of the heads from either the computer console or via a switch positioned on the end of the Y-axis. This is standard with multiple cutting heads as it is with all Intec™G2 machines.

benefits of the

Multiple Cutting Head System

Green Bullet Logo - TECHNI Waterjet

Double Machine Productivity

and output by utilizing the power of multiple, highly accurate cutting heads

Green Bullet Logo - TECHNI Waterjet

By Producing More Cuts Per Minute

you shorten the length it takes to make a return on your investment
Green Bullet Logo - TECHNI Waterjet

Extremely Safe to Operate

the cutting heads are paired with unique breakaway head configuration sensor technology

Green Bullet Logo - TECHNI Waterjet

Have Parts Produced in Half the Time

giving your workshop quicker turn around capabilities
Skip & Float

Maintain Optimal
Stand-Off Height

With The Skip & Float
Sheet materials are often subject to warping. The Skip and Float feature will ensure the cutting head is maintained at the optimal stand-off height above the material being cut (via the float mechanism). Without this feature, warped material can cause the cutting head to hit the material and break the focusing tube, or to partially block and not cut through the material.

The skip function automatically raises the cutting head well above the material when traversing between cuts. This ensures that the cutting head cannot catch on a cut part which may have tilted and risen above the materials. This will ensure that the focusing tube isn’t broken and the workpiece isn’t moved or damaged.

benefits of the

Skip & Float™ Attachment

Green Bullet Logo - TECHNI Waterjet

Greater Versatility

when cutting by allowing machines to accept warped material
Green Bullet Logo - TECHNI Waterjet

Heavily Reduced the Risk

of the machine crashing on warped materials
Green Bullet Logo - TECHNI Waterjet

Ensured Efficient Cutting

due to constant stand-off
Green Bullet Logo - TECHNI Waterjet

Higher Quality Parts

produced due to constant stand-off
Green Bullet Logo - TECHNI Waterjet

Clamping Reduced

with no need to pull the material flat
Message Icon - TECHNI Waterjet
SPEAK TO A WATERJET SPECIALIST

experience super accurate cuts with

Terrain Mapping

Touch-Probe

Touch-Probe

Touch-Probe height detection option performs a reliable and precise Terrain Mapping on the surface of the material, allowing the cutting head to automatically adjust its stand-off before piercing and during the cutting process.

By touching the surface of the slab it’s able to detect disparities in thickness and make compensations in the “Z” height. This is particularly important to prevent unexpected results during bevel cutting.

Features
  • Probe before each pierce on the fly (while cutting)
  • Probe before cutting the pierce points, path or full sheet
  • Probe four corners and the center of a sheet only
  • Probe only lines with bevels programmed
  • Use the probe to set standoff when setting plate origin

Laser

Laser Sensor option performs Precision Terrain Mapping on the surface of the material to be cut. This information is then used to maintain an accurate stand-off distance between the nozzle and the workpiece, resulting in more accurate parts than any other cutting head on the market. Other cutting heads set their stand-off only at the piercing point and then assume the workpiece is completely flat along the cut path, which is almost never the case.

As material flatness varies and stand-off changes, so does the geometry of the part being cut. A constant, accurate stand-off is critical when angle cutting, and the greater the angle, the more critical it becomes.

Features
  • Mapping before cutting the pierce points, path or full sheet
  • Mapping four corners and the center of a sheet only
  • Mapping only lines with bevels programmed
  • Use the laser as a pointer to edge find, find the center of a
    hole or use the dot to set the plate origin
Laser Sensor

panel matching

Has Never Been So Easy
Until Now

Tech-Vision

Tech-Vision

Tech-Vision is a highly sophisticated camera that sits above the machine bed to capture a birds-eye view of the material that is being cut.

This allows the operator to effectively perform bookend and waterfall edges, matching the patterns in materials such as stone, to ensure that the final product is exactly what the customer wants.

It’s also much easier for the operator to ensure benchtop positioning on the slab is correct before starting the cut by looking through the eye of the Tech-Vision Camera. This eliminates waste that would be associated with inaccurate panel matching.

Tech-Vision is used heavily within the stone industry as it is key to matching parts that will be mounted together.

Guard The Safety
of Your Staff

With Waterjet Safety Light Curtains

Many high – pressure waterjet customers require an additional level of safety by including Light Curtain Guarding along the front load/unload area of the Waterjet System.

The light curtain guarding allows operator access only when the cutting cycle is complete, and the high-pressure waterjet is turned off.

If the operator enters while the machine is cutting, the light curtain guarding beam is broken, the circuit is interrupted, the system is automatically paused.

The side fencing prevents operator side entry, allowing access only from the front. The safety light curtain guarding consists of an emitter unit and receiver unit that is mounted on the side safety fencing.

Safety Gate Img
Waterjet Safety Light Curtains

With Waterjet Safety Gate

The safety consists of a sliding up/down gate to obstruct the access to the operator from the front area of the machine during the cutting cycle.

The gate comes with polycarbonate viewing windows which also function as backsplash protection.

Available for i613-G2 and all gantry machines, this option also includes side and rear fencing.

Load Lifter Min

EZY-Load Lifter

Load Fragile Material like Glass
& Stone Easily

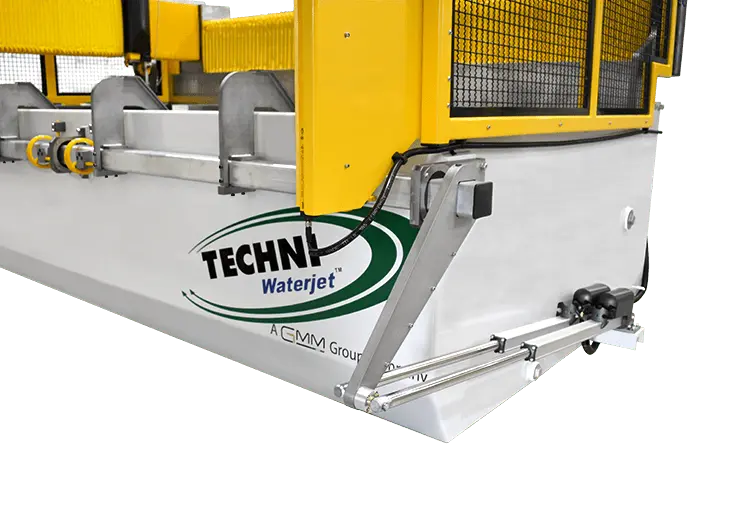

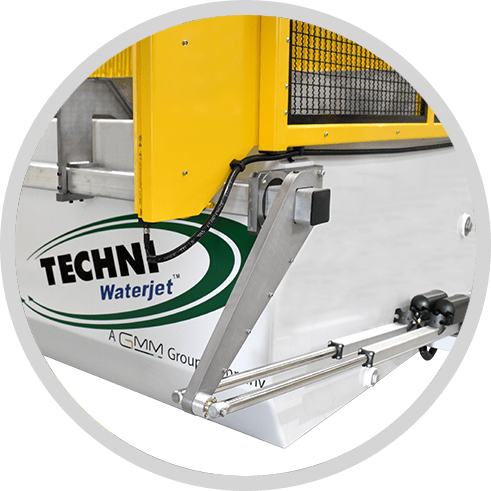

Designed to lighten the load, the Ezy-Load Lifters electrically actuated tilting arms allow for easy vertical loading and unloading of fragile materials such as glass and stone.

More often than not, materials like the ones mentioned undergo severe stress when being loaded on and off the machine bed, and because of this hairline fractures, cracks and complete breaks within the material can occur if lifting in the horizontal plane.

Standard Ezy-Load 150 MD

Maximum Weight – 150 kg (330lb)

Heavy Ezy-Load 250 MD

Maximum Weight- 250 Kg (550lb)

Speak to a Waterjet Specialist

If you are needing more information regarding one of our performance attachments, please fill out the form below to get into contact with one of our waterjet machine specialists
