Intec™G2 Waterjet
CNC Machines
Why use the Intec™G2 Series CNC Waterjet Machines
Materials You Can Cut

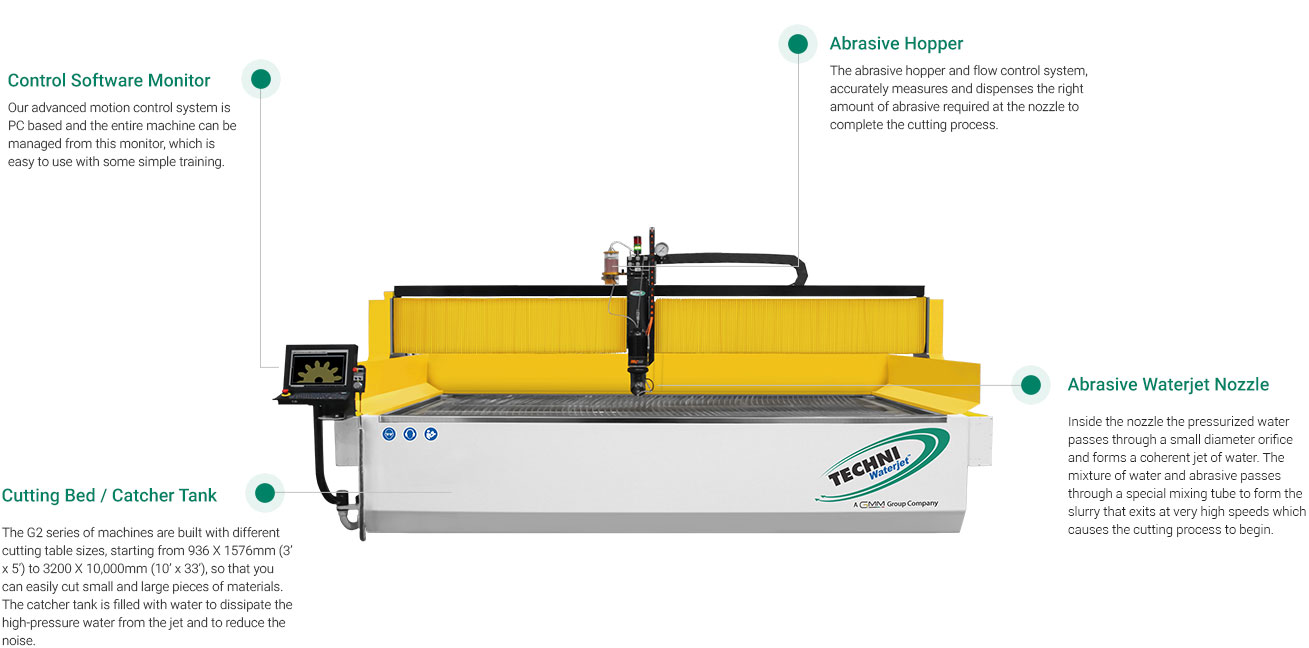

Intec™G2 Waterjet Machines Overview
Intec™G2 Abrasive Waterjet Series Range

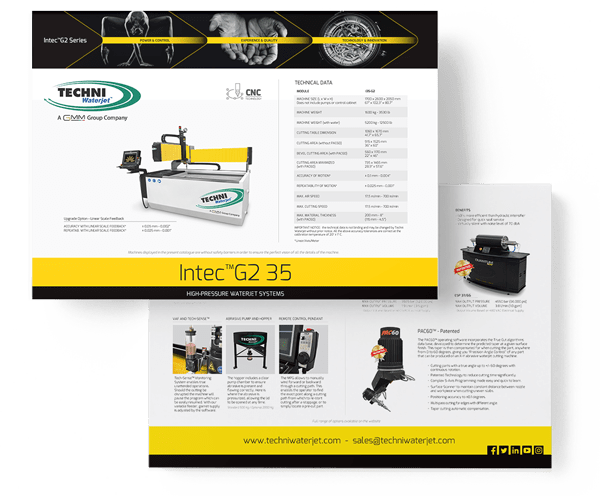

i35-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 1700 x 2600 x 2050 mm 67" x 102.3" x 80.7" |
| Cutting Area | 915 x 1525 mm 36" x 60" |
| Machine Type | Cantilever |
| Accuracy of Motion (Linear/Axis/Meter) | 0.1 mm - 0.004" |
| Max Material Thickness | 200 mm - 8" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |
i612-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 4900 x 2650 x 2050 mm 193” x 104.3” x 80.7” |
| Cutting Area | 1830 x 3660 mm 72" x 144" |
| Machine Type | Cantilever |
| Accuracy of Motion (Linear/Axis/Meter) | ±0.15 mm - 0.006" |
| Max Material Thickness | 200 mm - 8" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |

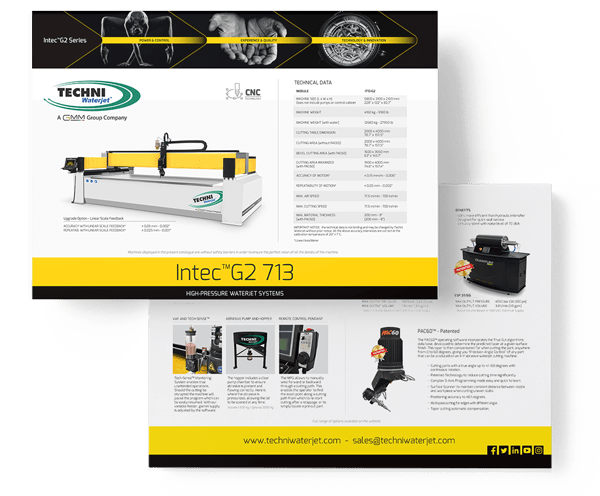

i713-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 5800 x 3100 x 2100 mm 228" x 122" x 82.7" |
| Cutting Area | 2000 x 4000 mm 78.7" x 157.5" |
| Machine Type | Gantry |
| Accuracy of Motion (Linear/Axis/Meter) | ±0.15 mm - 0.006" |
| Max Material Thickness | 200 mm - 8" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |
i1020-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 8000 x 4200 x 2000 mm 315" x 165.3" x 78.7" |
| Cutting Area | 3050 x 6100 mm 120" x 240" |
| Machine Type | Gantry |
| Accuracy of Motion (Linear/Axis/Meter) | ±0.15 mm - 0.006" |
| Max Material Thickness | 200 mm - 8" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |

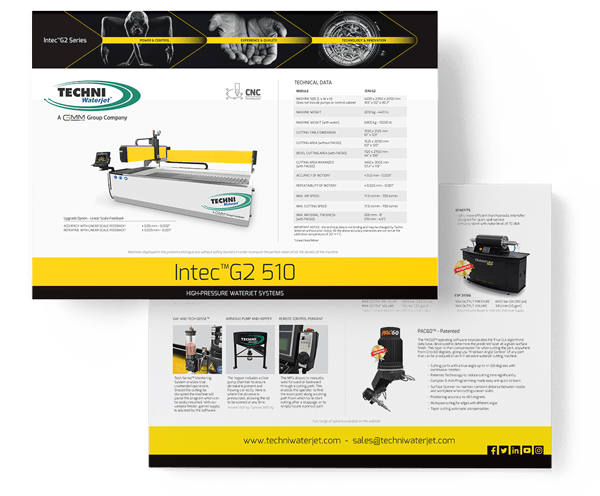

i510-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 4200 x 2350 x 2050 mm 165” x 92” x 80.7” |
| Cutting Area | 1525 x 3050 mm 60" x 120" |
| Machine Type | Cantilever |
| Accuracy of Motion (Linear/Axis/Meter) | ±0.12 mm - 0.005" |
| Max Material Thickness | 200 mm - 8" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |

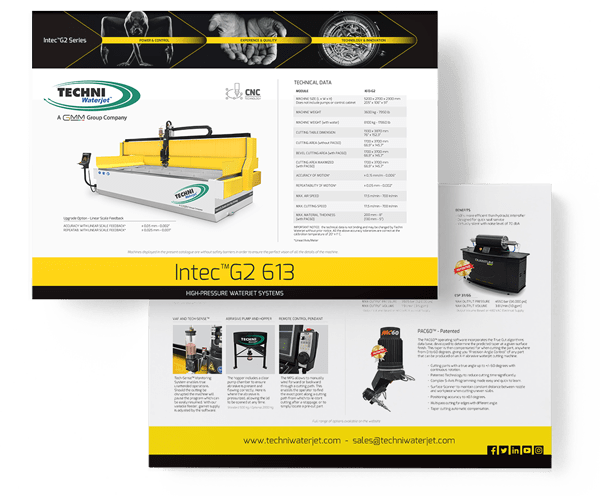

i613-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 5200 x 2700 x 2300 mm 205” x 106” x 91” |
| Cutting Area | 1700 x 3700 mm 66.9” x 145.7” |
| Machine Type | Monoblock |
| Accuracy of Motion (Linear/Axis/Meter) | ±0.15 mm - 0.006" |
| Max Material Thickness | 130 mm - 5" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |
i815-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 6580 x 3500 x 2100 mm 269.7” x 137.8” x 82.7” |
| Cutting Area | 2350 x 4750 mm 92.5” x 187” |
| Machine Type | Gantry |
| Accuracy of Motion (Linear/Axis/Meter) | ±0.15 mm - 0.006" |
| Max Material Thickness | 200 mm - 8" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |

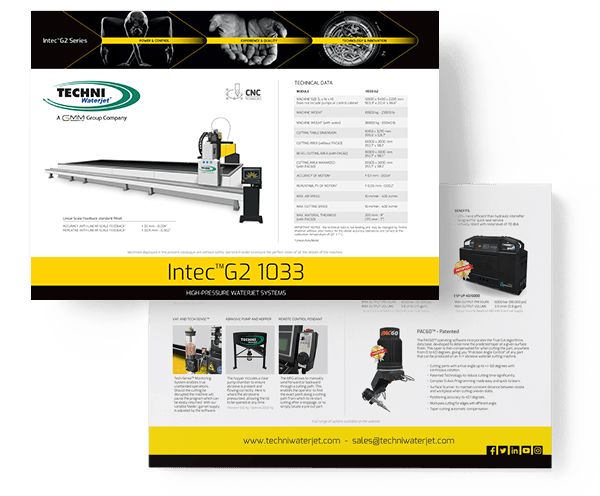

i1033-G2
Waterjet Cutting
Machine
| Machine Size (L x W x H) | 12800 x 5400 x 2200 mm 503.9” x 212.6” x 86.6” |
| Cutting Area | 10000 x 3000 mm 393.7” x 118.1” |
| Machine Type | Gantry |
| Accuracy of Motion (Linear/Axis/Meter) | ± 0.1 mm - 0.004” |
| Max Material Thickness | 200 mm - 8" |
| Materials that can be Cut | Listed here |
| Price | Enquire for Price |
| Brochure | Download |
STANDARD FEATURES
Intec™G2 Series
CNC WATERJET MACHINE
- Remote Control Pendant
- Break Away Head
- Tech-Sense™
- Water Raise & Lower
- Servo Z Axis
- ABRASIVE PUMP AND HOPPER

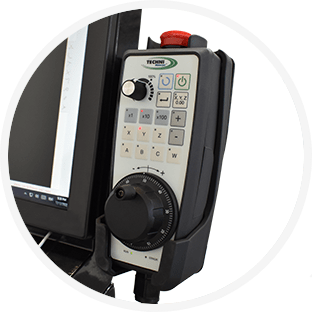

Remote Control Pendant
The MPG allows to manually wind forward or backward through a cutting path. This enables the operator to find the exact point along a cutting path from which to re-start cutting after a stoppage or to accurately locate a pre-cut part.
Break Away Head
When the cutting head inadvertently crashes into a clamp or fixture or hits the edge of a work piece or an upturned part, the Break Away Head will detect the crash and automatically stop the machine.

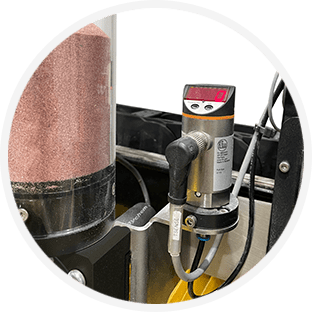

Tech Sense
With our new variable abrasive feeder, garnet supply to the cutting head is automatically adjusted by the software, e.g. during low pressure piercing. In addition, the Tech-Sense™ Monitoring System enables truly unattended operation. After an interruption, the cutting program can be easily resumed.
Water Raise & Lower
Automatic water Raise/Lower at the push of a button for submerged cutting: our tanks include airtight welds of an air chamber which uses regular shop air pressure. No moving parts are required, an on/off solenoid valve allows water level adjustment within a few seconds.
Servo Z Axis
Programmable Z axis with auto height position recall, laser terrain mapping and edge location optics.
ABRASIVE PUMP AND HOPPER
The hinged lid on the hopper system allows easy access to inspect and fill at any time, without the need to de-pressurize. The clear pump chamber allows a quick visual to ensure abrasive is present and flowing correctly.
REMOTE CONTROL PENDANT
Remote Control Pendant
The MPG allows to manually wind forward or backward through a cutting path. This enables the operator to find the exact point along a cutting path from which to re-start cutting after a stoppage or to accurately locate a pre-cut part.
Break Away Head
Break Away Head
When the cutting head inadvertently crashes into a clamp or fixture or hits the edge of a work piece or an upturned part, the Break Away Head will detect the crash and automatically stop the machine.
Tech Sense
Tech Sense
Tech Sense monitoring system provides the ability to run a night shift without the need for an attending operator. Should the cutting be disrupted e.g. blocked nozzle, the machine will pause the program and send a text message to your cell phone (SMS Notification option must be fitted.)
Water Raise & Lower
Water Raise & Lower
Automatic water Raise/Lower at the push of a button for submerged cutting: our tanks include airtight welds of an air chamber which uses regular shop air pressure. No moving parts are required, an on/off solenoid valve allows water level adjustment within a few seconds.
Servo Z Axis
Servo Z Axis
Programmable Z axis with auto height position recall, laser terrain mapping and edge location optics.
ABRASIVE PUMP AND HOPPER
ABRASIVE PUMP AND HOPPER
The hinged lid on the hopper system allows easy access to inspect and fill at any time, without the need to de-pressurize. The clear pump chamber allows a quick visual to ensure abrasive is present and flowing correctly.
Speak to a Intec™G2 Specialist
- Laser Mapping
- Touch–Probe
- High Pressure Gauge
- Dual Head Cutting
- Garnet Removal System
- Safety Light Curtain
- Tech-Vision Camera
- Tech-Connect

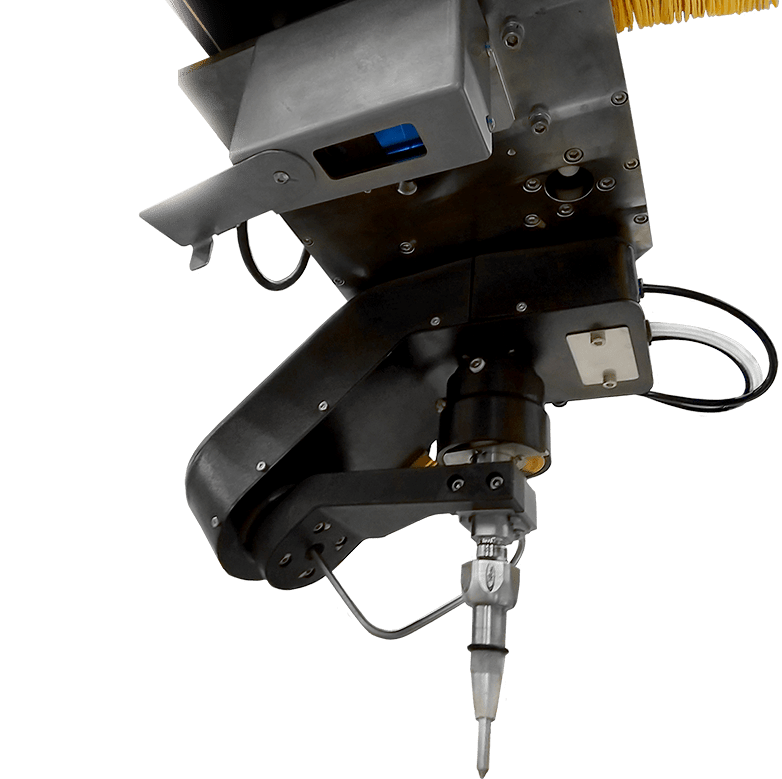

EXTREME ACCURACY WITH
Laser Mapping
The Laser performs a precise terrain map of the workpiece to increase the accuracy of the cut. Able to map piece points, the full sheet and paths as well as find origin and edges of the sheet.
- Increases Cutting Accuracy
- Minimise Secondary Operations
- Boosts Machine Operating Efficiency
ADD ON FEATURES
Touch-Probe
The Touch-Probe performs terrain mapping by touching the surface of the slab. This allows the cutting head to automatically adjust its standoff. Ideal for materials not suitable for laser, such as reflective and translucent materials.
- Increase Cutting Accuracy
- Minimise Secondary Finishing
ADD ON FEATURES

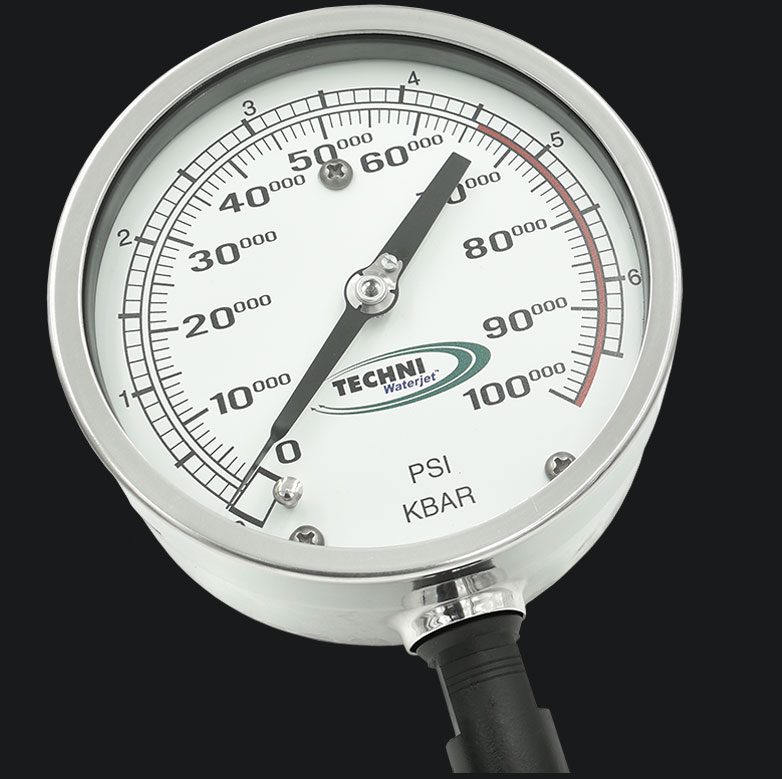

High Pressure Gauge
The HP gauge displays the pressure of the high pressure water line right at the cutting head. This allows the operator to see the actual pressure supplied at the cutting head.
- Assists in troubleshooting
- Improves machine safety
- Allows for accurate cutting pressure
ADD ON FEATURES

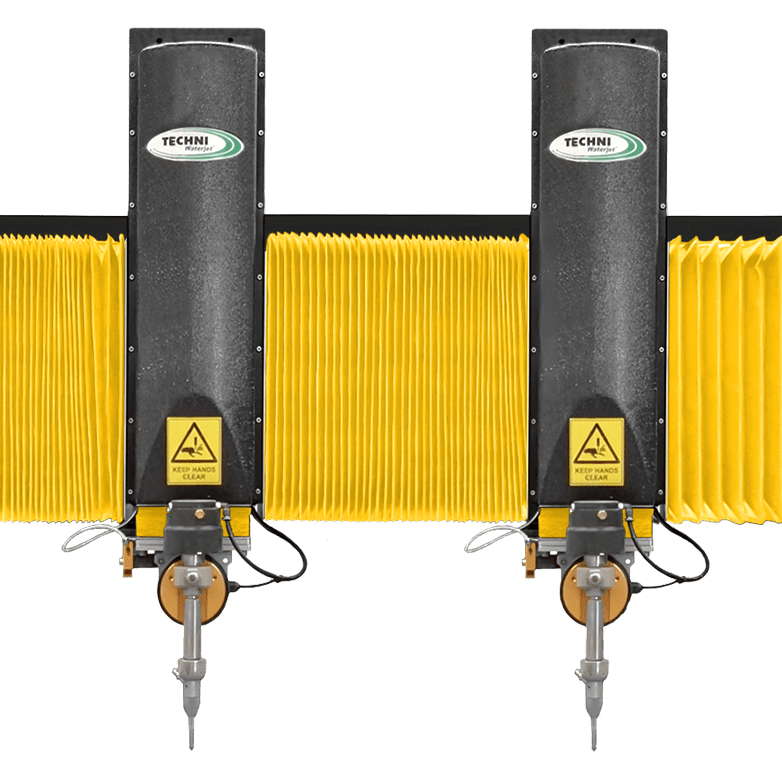

Dual Head Cutting
The twin cutting heads work together to increase the cutting productivity. The Waterjet machine will run the program once with twice the amount parts being cut. Pump power is a key decision variable when considering this option.
- Minimises the cutting time
- Boost workshop productivity
- Produces twice amount of parts
ADD ON FEATURES
Garnet Removal
System (GRS)
The Garnet removal system collects abrasive accumulated in the bottom of the Waterjet tank. The abrasive is then pumped to the GRS where it settles into a bag while the clean water is returned to the waterjet tank.
- Saves time in cleaning out the catcher tank
- No need to stop production to clean tank
- Abrasive material can be disposed of simply and safely
- Water is reused minimising waste and cost
ADD ON FEATURES

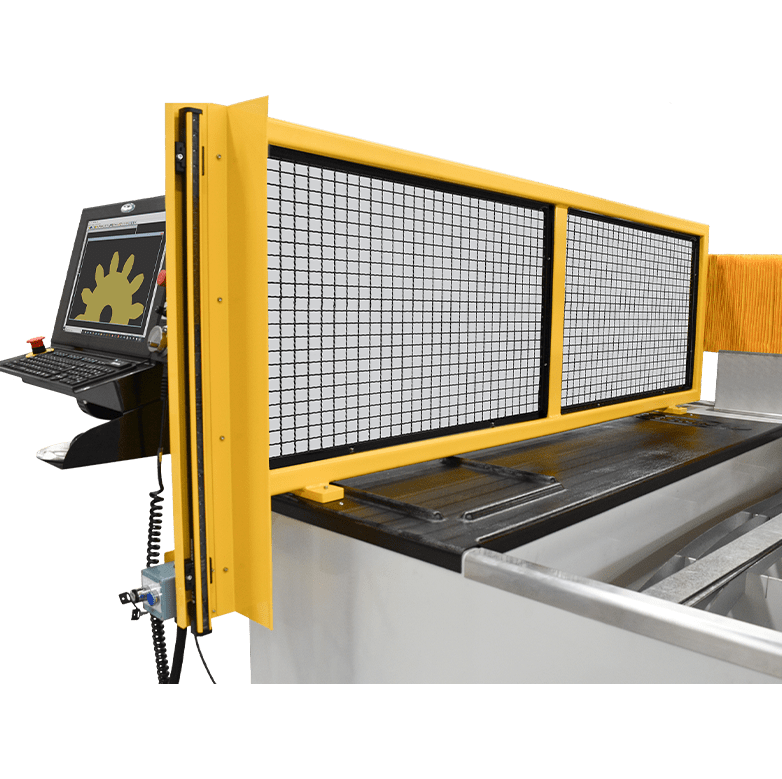

Safety Light Curtain
Allows access only when the cutting cycle is complete and the high pressure is turned off. If the operator enters while the machine is cutting, the system is automatically paused.
- Creates a safer workshop environment
- Minimises risk for injury
ADD ON FEATURES

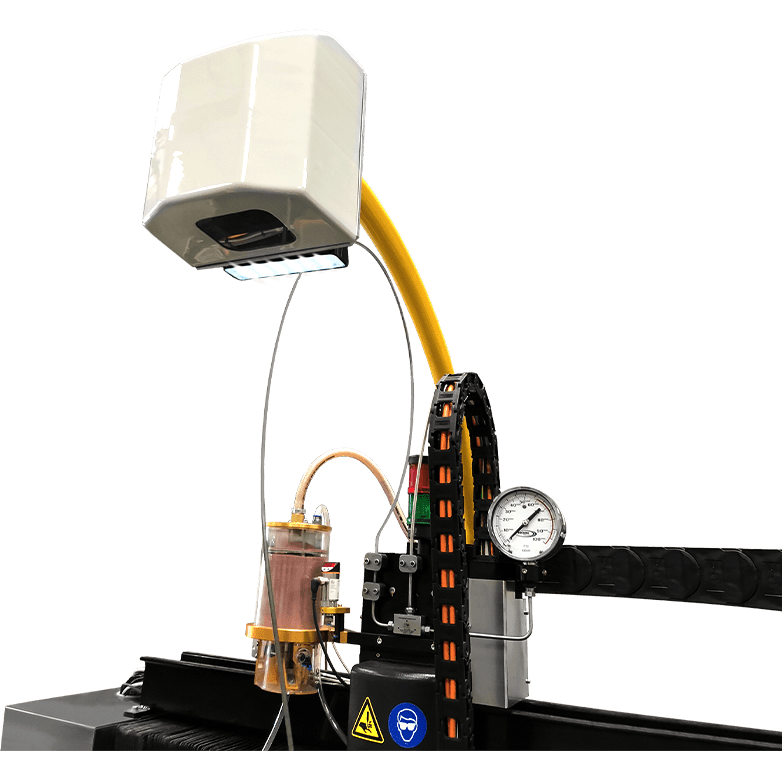

Tech-Vision Camera
To effectively match parts that will be mounted close together, Tech-Vision camera helps the operator to perform book end and waterfall matching panels.
- Allows for more complex geometries
- Accurately produce matching parts
ADD ON FEATURES
Tech-Connect
Intuitive easy to use app for smartphones to see real time information of your pump and machine. Everything you would normally monitor while standing at the machine can now be done in the palm of your hand.
- Machine and pump activity
- Maintenance schedule
- Cutting calculator
- Alarms monitor
- Support links
- Cutting logs
- Service logs
- Camera
- … and much more
Laser mapping
EXTREME ACCURACY WITH
Laser Mapping
The Laser performs a precise terrain map of the workpiece to increase the accuracy of the cut. Able to map piece points, the full sheet and paths as well as find origin and edges of the sheet.
- Increases Cutting Accuracy
- Minimise Secondary Operations
- Boosts Machine Operating Efficiency
Touch-Probe
ADD ON FEATURES
Touch-Probe
The Touch-Probe performs terrain mapping by touching the surface of the slab. This allows the cutting head to automatically adjust its standoff. Ideal for materials not suitable for laser, such as reflective and translucent materials.
- Increase Cutting Accuracy
- Minimise Secondary Finishing
High Pressure Gauge
ADD ON FEATURES
High Pressure Gauge
The HP gauge displays the pressure of the high pressure water line right at the cutting head. This allows the operator to see the actual pressure supplied at the cutting head.
- Assists in troubleshooting
- Improves machine safety
- Allows for accurate cutting pressure
Dual Head Cutting
ADD ON FEATURES
Dual Head Cutting
The twin cutting heads work together to increase the cutting productivity. The Waterjet machine will run the program once with twice the amount parts being cut. Pump power is a key decision variable when considering this option.
- Minimises the cutting time
- Boost workshop productivity
- Produces twice amount of parts
Garnet Removal System
ADD ON FEATURES
Garnet Removal
System (GRS)
The Garnet removal system collects abrasive accumulated in the bottom of the Waterjet tank. The abrasive is then pumped to the GRS where it settles into a bag while the clean water is returned to the waterjet tank.
- Saves time in cleaning out the catcher tank
- No need to stop production to clean tank
- Abrasive material can be disposed of simply and safely
- Water is reused minimising waste and cost
Safety Light Curtain
ADD ON FEATURES
Safety Light Curtain
Allows access only when the cutting cycle is complete and the high pressure is turned off. If the operator enters while the machine is cutting, the system is automatically paused.
- Creates a safer workshop environment
- Minimises risk for injury
Tech-Vision Camera
ADD ON FEATURES
Tech-Vision Camera
To effectively match parts that will be mounted close together, Tech-Vision camera helps the operator to perform book end and waterfall matching panels.
- Allows for more complex geometries
- Accurately produce matching parts
Tech-Connect
ADD ON FEATURES
Tech-Connect
Intuitive easy to use app available on iPhone and Android smartphones to see real time information of your pump and machine. Everything you would normally monitor while standing at the machine can now be done in the palm of your hand. You just need an internet connection for the machine control and a phone for the app.
- Machine and pump activity
- Maintenance schedule
- Cutting calculator
- Alarms monitor
- Support links
- Cutting logs
- Service logs
- Camera
- … and much more
- Cutting parts with a true angle up to +/- 60 degrees.
- Continuous rotation, increasing accuracy and efficiency.
- Patented Technology to reduce cutting time significantly.
- Complex 5-Axis Programming made easy and quick to learn.
- Surface Scanner to maintain a constant distance between nozzle and workpiece when cutting uneven slabs.
- Positioning accuracy to ± 0.1 degrees.
- Multi-pass cutting for edges with different angles, such as chamfers and counter sinks.
- Taper cutting automatic compensation to produce perfectly straight edges at any cutting speed.
Take your Intec™G2 CNC waterjet cutting machine to the next level of performance with our award-winning Quantum® pump. Engineered & built specifically for the Intec™G2 Series, the Quantum® ensures accurate and consistent pressure which means your cutting sustains a high level of accuracy and a smooth cut edge from start to finish.
- 60% More Efficient than standard hydraulic intensifiers
- 70% Less Cooling Water than hydraulic intensifiers
- Most Quiet pump on market
- Most Ergonomic and easy to use pump
Our SoftecTM all in one windows cutting software, is developed especially for our range of abrasive water jet cutting machines. Based around TRU-CutTM technology, our user-friendly software determines the optimum cutting speed and machine ramping characteristics to give you perfect parts every time. Once you select the material to be cut, it’s thickness and surface edge, the computer will take care of the rest.
