The Pump Series

Light Series

MAX OUTPUT PRESSURE
60,000 PSI

Power Series

MAX OUTPUT PRESSURE
66,000 PSI

Ultimate Series

MAX OUTPUT PRESSURE
88,000 PSI

Light Series

max output pressure 60,000 psi

First-Step Into
Quantum® World

Cut softer materials like foam, food, glass without pressure fluctuations which is critical for quality of this kind of materials; its incredibly small footprint makes it an easy fit for any workshop.

VP 15/52, 22/60 (KW/PSI)

Water-only applications

Ideal for food cutting

Small footprint

Quantum Waterjet Pump Light Series

specifications

vp 15/52
vp 22/60
Max output pressure PSI
(BAR)
52,000
(3585)
60,000
(4100)
Max output volume GPM
(LPM)
0.53
(2.0)
0.53
(2.0)
Cooling water requirement GPM (LPM)
Temperature
1.0 (4)
at 60°F (16°C)
1.0 (4)
at 60°F (16°C)
Physical dimensions L W H
(meter)
51” x 21” x 42”
(1.3 x 0.5 x 1.1)
51” x 21” x 42”
(1.3 x 0.5 x 1.1)
Max noise level68 dB68 dB
Power Requirements30 Amp40 Amp

Power Series

max output pressure 66,000 psi

All-Round
Quantum® Solution

Cut any type of material with ease and smooth edges. Advanced diagnostics enables predictive maintenance; the built-in router allows for remote support everywhere in the world.

ESP 37/66, 74/66 (KW/PSI)

High-capacity oil filters

Larger plungers

Booster pump

Built-in router for remote support

Advanced diagnostics ready

Power Series Img2

specifications

ESP 37/66
ESP 74/66
Max output pressure PSI
(BAR)
66,000
(4550)
66,000
(4550)
Max output volume GPM
(LPM)
1.0
(3.8)
2.0
(7.6)
Cooling water requirement GPM (LPM)
Temperature
1.6 (6)
at 54°F (12°C)
3.2 (12)
at 54°F (12°C)
Physical dimensions L W H
(meter)
73” x 26” x 50”
(1.8 x 0.66 x 1.27)
79” x 43” x 54”
(2.0 x 1.0 x 1.35)
Max noise level70 dB73 dB
Power Requirements60 Amp125 Amp

Ultimate Series

max output pressure 88,000 psi

Next-Level
Quantum® Experience

Cut anything at maximum speed for high-demanding production with peace of mind. Despite its incredible capabilities, this pump can withstand the workload without affecting its reliability and consumables’ lifespan.

ESP UP 40/6000, ESP UP 80/6000 (KW/BAR)

Heavy-duty frame

Integrated LP water filters

External cartridge check valves

Long-lasting, quick-change seal design

Built-in router for remote support

Advanced diagnostics feature

Quantum Waterjet Pump Ultimate Series

specifications

UP 40/6000
UP 80/6000
Max output pressure PSI
(BAR)
88,000
(6000)
88,000
(6000)
Max output volume GPM
(LPM)
0.8
(3.0)
1.6
(6.0)
Cooling water requirement GPM (LPM)
Temperature
1.6 (6)
at 54°F (12°C)
3.2 (12)
at 54°F (12°C)
Physical dimensions L W H
(meter)
79” x 28” x 54”
(2.0 x 0.7 x 1.35)
79” x 43” x 54”
(2.0 x 1.0 x 1.35)
Max noise level70 dB73 dB
Power Requirements60 Amp125 Amp

Features

Salient Features of The Quantum®
Waterjet Pump Series

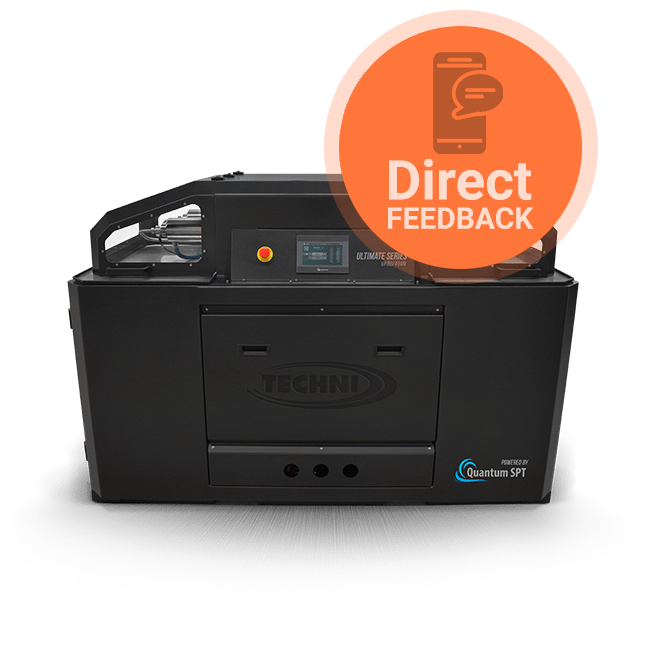

ESP Diagnostics

features

Predictive Diagnostics
High-tech sensors, on both oil and water circuit, enable the communication with the pump. This information, combined with Servo Drive technology, are fed into a computer, where 30+ years of waterjet experience have been used to develop algorithm’s to accurately predict when maintenance is required, minimizing unplanned downtime. Thanks to its integrated router, the pump is visible online to a Techni technician who can perform live troubleshooting.


  • Diagnose potential maintenance issues
  • Advise on how to perform maintenance
ESP Efficiency

features

Engineered For Efficiency
The Patented Direct Drive Servo Technology is up to 60% more efficient than a typical Hydraulic Intensifier The superior pressure control will also ensure a constant pressure while cutting, resulting in smoother edges and less garnet being required for any given cut.


  • Reduces carbon footprint with less energy required
  • Has the ability to direct energy produced to areas that require it
Reduced Maintenance

features

Reduced Maintenance
Compared to direct-drive pumps, the ESP require less maintenance work. This can be attributed to the plunger speed when it reciprocates. Its superior design includes visual diagnostics, provides for easy, quick and ergonomic access to the pump when maintenance is required. Also, a typical hydraulic intensifier’s have pressure spikes of 10% or more when the cutting head opens and closes, significantly reducing HP tube and fitting life.


  • Minimises machine downtime
  • Save on maintenance and servicing costs
Green Technology

features

Environmentally Friendly

Not only does the ESP significantly reduces the power consumption, but it also uses far less cooling water than standard hydraulic intensifiers. Combined with the fact that our pumps have minimal oil usage compared to competitive products, this makes it the best pump available for the environment.

  • Reduces power consumption
  • Reduces water requirements
  • Reduces oil requirements

Ultimate Series Design

Valve Design

Check Valve and
Seal Design

Cut anything at maximum speed for high-demanding production with peace of mind. Despite its incredible capabilities, this pump can withstand the workload without affecting its reliability and consumables’ lifespan.

Quick change seal design

Quick change seal design

External cartridge check valves

External cartridge check valves

To find Quantum® Patents please click here >>
