Rapid prototyping, a term often whispered in the corridors of manufacturing and design innovation, stands at the forefront of modern engineering. This article delves into its fascinating world, unraveling its essence and impact on the industry.

What is Rapid Prototyping?

Rapid Prototyping (RP) represents a group of techniques used to quickly fabricate a scale model or a part using three-dimensional computer-aided design (CAD) data. Its roots can be traced back to the late 1980s, emerging as a revolutionary method to speed up the product development process. Rapid prototyping encompasses various methods like 3D printing, where a model is constructed by adding material layer by layer.

What is the History of Rapid Prototyping?

Rapid prototyping, a transformative force in manufacturing and product development, has an origin story as compelling as its applications. This technique, which emerged from the realms of additive manufacturing and computer-aided design (CAD), has revolutionized how products are conceptualized, developed, and brought to market.

Who Invented Rapid Prototyping?

Rapid prototyping was ingeniously invented by Chuck Hull in 1984. He developed the first working 3D printer and subsequently introduced the world to the concept of stereolithography (SLA), a process that uses a photosensitive liquid hardened by laser light to create three-dimensional objects layer by layer.

How Has Rapid Prototyping Evolved Over Time?

The evolution of rapid prototyping reflects a history of innovation and technological ingenuity. From Hull’s initial SLA printer, rapid prototyping technology progressed to include methods like Fused Deposition Modeling (FDM) and Selective Laser Sintering (SLS). These developments expanded the range of materials and applications, making rapid prototyping a cornerstone in industries ranging from aerospace to healthcare.

How Does Rapid Prototyping Process Work?

Understanding the rapid prototyping process is key to appreciating its impact on the manufacturing and product development process. At its core, rapid prototyping involves turning digital designs into tangible, physical objects.

  • Detailed Stages of the Rapid Prototyping Process:
    1. Design Creation: Using CAD software, a digital 3D model of the object is created. This stage is crucial for laying the groundwork for the prototype.
    2. Data Preparation: The CAD model is processed and converted into a format suitable for the chosen rapid prototyping technology, typically an STL file.
    3. Machine Setup: The rapid prototyping machine is prepared, calibrated, and loaded with the appropriate materials, whether plastic, resin, or metal powders.
    4. Prototype Building: The machine constructs the prototype layer by layer, adhering to the specifications of the CAD model.
    5. Post-processing: After the build process, the prototype often requires post-processing to achieve the desired surface finish or mechanical properties. This can include sanding, painting, or assembly.

In this step-by-step process, rapid prototyping demonstrates its flexibility and efficiency, accommodating an array of materials and technologies to produce everything from low-fidelity prototypes for early stage design validation to high fidelity prototypes that closely mimic the final product.

Why is Rapid Prototyping Important in Manufacturing?

The significance of rapid prototyping in manufacturing lies in its ability to quickly produce a physical object from a digital design. This capability is not just about speed; it also offers a tangible way to evaluate and refine a product’s design in the early stages, making the process more efficient and cost-effective. By enabling multiple iterations and providing real user feedback, rapid prototyping helps in honing the final product to better meet market demands and user expectations.

Moreover, rapid prototyping aids in the iterative process of design, allowing development teams to identify and address potential issues early on. This approach reduces the risk and cost associated with making changes in the later stages of product development. Additionally, the use of functional prototypes allows for thorough testing of the product’s functionality and usability, ensuring a higher quality of the finished product.

What are the Advantages of Rapid Prototyping?

Rapid prototyping, a transformative process in the manufacturing and design industries, offers numerous advantages. This technique not only accelerates the product development cycle but also enhances the overall quality and effectiveness of the final products.

  • Speed of Development: One of the most significant benefits of rapid prototyping is its ability to quickly turn concepts into working models. This speed facilitates faster design iterations, allowing for rapid responses to user feedback and market demands.
  • Cost Reduction: By identifying design flaws early in the development process, rapid prototyping helps avoid costly revisions and tooling changes during mass production. This early detection of issues results in substantial cost savings.
  • Improved Design Quality: The ability to create and test multiple prototypes quickly leads to a more refined final product. Each iteration can be used to improve design and functionality, ensuring a higher quality end product.
  • Enhanced Creativity and Innovation: Rapid prototyping encourages experimentation and creativity. Designers and engineers can explore more options and alternative solutions without the constraints of time and cost typically associated with traditional prototyping methods.
  • Customization and Personalization: It allows for easy customization and personalization of designs. This flexibility is particularly advantageous in industries like medical devices and consumer products, where individual needs and preferences are paramount.
  • Functional Testing: Rapid prototypes produced through this process are often robust enough for functional testing, providing valuable insights into the performance and usability of a product before it goes into full-scale production.
  • Material Diversity: A wide range of materials available for rapid prototyping, from plastics to metals, enables testing of products under realistic conditions and material properties.
  • Stakeholder Engagement: Physical prototypes provide a tangible product for stakeholders to assess, leading to more effective communication and decision-making.
  • Reduction in Waste: Many rapid prototyping techniques, such as additive manufacturing, are more material-efficient compared to traditional manufacturing methods, resulting in less waste.
  • Market Advantage: The ability to develop products faster provides a competitive advantage in the market. Rapid prototyping companies can often get their products to market quicker than their competitors.

What are the Main Techniques Used in Rapid Prototyping?

In the diverse world of rapid prototyping, a range of techniques have been developed, each suited for different needs and applications. These techniques, governed by the principles of rapid prototyping process and additive manufacturing, cater to various aspects of prototyping, including material choice, resolution, strength, and surface finish.

Stereolithography (SLA)

Stereolithography, often referred to as SLA, stands as one of the earliest and most refined forms of rapid prototyping technology. It works on the principle of curing a photosensitive liquid with a laser to form solid layers, building up the desired shape layer by layer.

  • Industries and Use Cases: SLA is widely used across multiple industries, including medical, aerospace, and automotive, for creating detailed models, prototypes, and production parts.
  • Supported Materials: Typically involves the use of photosensitive resins.
  • Advantages: Offers high precision and excellent surface finish.
  • Limitations: Generally limited to smaller objects due to the size of the machines and the cost of the resin material.

Fused Deposition Modeling (FDM)

Fused Deposition Modeling, or FDM, is another popular rapid prototyping technique. It involves the extrusion of a thermoplastic filament, which is deposited layer by layer to create the prototype.

  • Industries and Use Cases: FDM is extensively used in product design, education, and even in consumer applications due to its ease of use and versatility.
  • Supported Materials: Employs a range of thermoplastic filaments like ABS, PLA, and their composites.
  • Advantages: It is known for its material versatility, ease of use, and accessibility.
  • Limitations: The resolution and surface finish are typically not as fine as those achievable with other techniques like SLA.

Selective Laser Sintering (SLS)

Selective Laser Sintering, commonly known as SLS, is a powerful technique in the rapid prototyping arsenal. It utilizes a high-powered laser to sinter powdered material, layer by layer, to create a solid structure. This process is particularly suitable for rapid prototyping due to its ability to produce strong, durable parts with complex geometries.

  • Industry Utilization: SLS is extensively used in aerospace, automotive, and medical industries for producing functional prototypes, end-use parts, and complex geometrical components.
  • Supported Materials: Typically involves the use of nylon or other polyamide powders.
  • Advantages: The key strengths of SLS include the ability to create highly durable parts without the need for support structures and the flexibility to use a wide range of materials.
  • Limitations: Challenges with SLS involve higher costs and surface finish that may not be as smooth as other techniques like SLA or DLP.

Digital Light Processing (DLP)

Digital Light Processing (DLP) stands out as a rapid prototyping technology for its speed and efficiency. It uses a digital projector screen to flash a single image of each layer across the entire platform, curing photopolymer resins. DLP is particularly well-suited for applications requiring high speed without compromising on resolution.

  • Industry Utilization: DLP is commonly applied in the dental industry for creating crowns and bridges, and in the entertainment industry for detailed props and models.
  • Supported Materials: Mainly uses photosensitive resins.
  • Advantages: DLP is renowned for its speed, which is significantly faster than SLA, and for producing parts with excellent resolution and surface finish.
  • Limitations: The primary limitations of DLP include a smaller build size compared to some other technologies and the dependency on resin properties.

Laminated Object Manufacturing (LOM)

Laminated Object Manufacturing, commonly referred to as LOM, is a distinctive rapid prototyping technique that involves layering adhesive-coated paper, plastic, or metal laminates and cutting them into shape with a laser or knife. LOM is particularly suited for rapid prototyping due to its cost-effectiveness and ability to produce large parts.

  • Industry Utilization: LOM is frequently used in industries such as aerospace and automotive for creating large prototypes, models, and patterns.
  • Supported Materials: Materials typically include paper, plastics, and metal foils.
  • Advantages: The primary benefits of LOM are its low material cost and the ability to produce larger parts compared to other rapid prototyping techniques.
  • Limitations: Limitations include lower dimensional accuracy and surface finish quality, and the prototype might require more post-processing work.

Binder Jetting

Binder Jetting is a rapid prototyping process that involves depositing a liquid binding agent onto a powder bed, layer by layer, to create an object. This technology is valued for its versatility in material choice and ability to create full-color prototypes.

  • Industry Utilization: Widely used in industries for creating complex geometries, architectural models, and intricate designs.
  • Supported Materials: Includes a range of powders such as gypsum, sand, and metals.
  • Advantages: Its major strengths include the ability to print in full color and compatibility with a variety of materials.
  • Limitations: The prototypes produced may have lower strength and require post-processing for durability.

Direct Metal Laser Sintering (DMLS)

Direct Metal Laser Sintering (DMLS) is an advanced rapid prototyping technique that uses a laser to sinter powdered metal, layer by layer, to create metal parts. DMLS is renowned for its precision and ability to produce complex geometries that are often challenging to manufacture by traditional methods.

  • Industry Utilization: Predominantly used in aerospace, automotive, and medical sectors for producing complex, high-strength, and durable components.
  • Supported Materials: Commonly used materials include stainless steel, titanium, and aluminum alloys.
  • Advantages: Offers high precision and strength, making it suitable for functional parts and complex designs.
  • Limitations: High costs of materials and machine operation, along with the need for post-processing, are its main limitations.

Electron Beam Melting (EBM)

Electron Beam Melting, known as EBM, is a sophisticated technique in which a high-power electron beam is used to melt and fuse metallic powder particles. This method is particularly suitable for applications requiring high strength and thermal resistance.

  • Industry Utilization: Frequently employed in the aerospace and medical industries for manufacturing complex parts such as turbine blades and orthopedic implants.
  • Supported Materials: Primarily metals like titanium alloys.
  • Advantages: Capable of producing extremely dense and strong parts with high thermal resistance.
  • Limitations: EBM machines are expensive, and the process is limited to certain types of metal powders.

Selective Laser Melting (SLM)

Selective Laser Melting (SLM) stands as a prominent technique in the rapid prototyping process, primarily utilized for its precision and strength. It involves fully melting and fusing metallic powders using a high-powered laser, layer by layer, to create solid metal parts.

  • Industry Utilization: SLM is extensively used in the aerospace, automotive, and medical industries for manufacturing complex and durable components, such as engine parts and medical implants.
  • Supported Materials: Common materials include stainless steel, aluminum, titanium, and cobalt chrome alloys.
  • Advantages: Offers the ability to produce parts with complex geometries and excellent mechanical properties, suitable for functional testing and end-use applications.
  • Limitations: High costs associated with materials and machine operation, and the need for extensive post-processing.

PolyJet Printing

PolyJet Printing is a rapid prototyping technology known for its precision and versatility. It works by jetting layers of curable liquid photopolymer onto a build tray, which are instantly cured by UV light. This method allows for the creation of parts with diverse material properties and colors in a single print.

  • Industry Utilization: Widely used in consumer goods, electronics, and automotive industries for creating detailed prototypes, concept models, and molds.
  • Supported Materials: A wide range of photopolymers, including rigid, flexible, transparent, and high-temperature materials.
  • Advantages: Ability to produce parts with intricate details, smooth surfaces, and multiple material properties.
  • Limitations: Limited strength and durability of the printed parts, making them more suitable for aesthetic prototypes rather than functional testing.

Injection Molding

Injection Molding, though traditionally not categorized under rapid prototyping, has evolved with the development of rapid tooling techniques. It involves injecting molten material into a mold to produce parts at high volumes. Rapid tooling enables the quick creation of molds, making injection molding viable for rapid prototyping.

  • Industry Utilization: Predominantly used in mass production, but now also for rapid prototyping in industries like automotive, consumer products, and medical devices.
  • Supported Materials: A vast range of plastics and some metals.
  • Advantages: Highly efficient for mass production with excellent repeatability and material variety.
  • Limitations: High initial cost for mold creation and not cost-effective for low-volume production without rapid tooling.

Multi Jet Fusion (MJF)

Multi Jet Fusion (MJF), developed by HP, is a breakthrough in the field of rapid prototyping. It uses an inkjet array to apply fusing and detailing agents across a powder bed, which are then fused by heating elements. MJF is known for its speed and ability to create robust, detailed parts.

  • Industry Utilization: Commonly used in automotive, aerospace, and consumer goods for functional prototypes and end-use parts.
  • Supported Materials: Various thermoplastic polymers, including Nylon.
  • Advantages: Produces strong parts with fine detail and consistent mechanical properties, suitable for functional testing and short-run production.
  • Limitations: Limited range of materials compared to other techniques and the need for post-processing to improve surface finish.

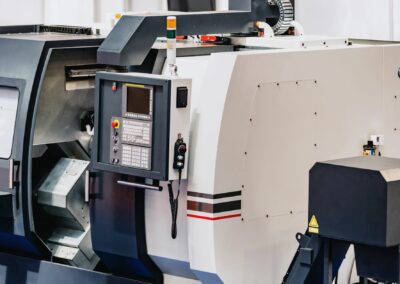

CNC Machining

CNC (Computer Numerical Control) Machining is a subtractive manufacturing process, vital in the rapid prototyping landscape. It involves using computer-controlled machine tools to remove layers from a solid block of material, thereby shaping the desired part.

  • Industry Utilization: CNC Machining is widely used across industries such as automotive, aerospace, and consumer electronics for producing accurate prototypes, jigs, fixtures, and functional parts.
  • Supported Materials: It can work with a wide range of materials including metals, plastics, and composites.
  • Advantages: Offers high precision and material versatility. It’s suitable for producing parts with tight tolerances and intricate details.
  • Limitations: The subtractive nature of the process can lead to material wastage, and the cost can be high for complex parts.

Waterjet Cutting

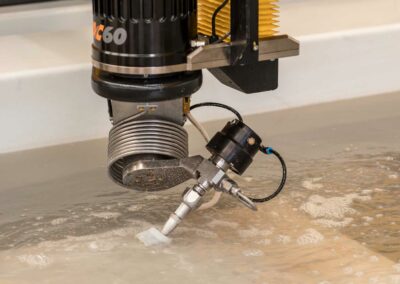

Waterjet Cutting, an innovative technique in rapid prototyping, utilizes a high-pressure stream of water, often mixed with abrasive particles, to cut materials. It’s known for its precision and versatility in cutting a wide range of materials.

  • Industry Utilization: Commonly used in industries for cutting, shaping, and reaming a variety of materials including metals, glass, and composites.
  • Supported Materials: Capable of cutting almost any material including metals, stone, ceramics, and composites.
  • Advantages: Provides a clean and precise cut without heat-affected zones, preserving the material’s integrity.
  • Limitations: Thicker materials can be challenging to cut, and the process can be slower compared to other cutting methods.

Techniwaterjet stands out as a leading manufacturer of waterjet cutting machines suitable for rapid prototyping. With over 30 years of innovation in high-pressure abrasive waterjet cutting solutions, they have developed cutting-edge systems like the “Techjet™” and “Intec”. These systems are celebrated for their efficiency in cutting parts up to 12” thick in virtually any material. The company has carved a niche in the Robotic Waterjet Market, particularly for high-speed trimming of automotive components.

Vacuum Casting

Vacuum Casting is a rapid prototyping technique that involves pouring liquid material into a silicone mold under a vacuum. This process is particularly suitable for producing small numbers of high-quality prototypes or end-use parts.

  • Industry Utilization: Used extensively in consumer electronics, medical devices, and automotive for producing high-quality prototypes, end-use parts, and replicas.
  • Supported Materials: Typically involves polyurethanes and other polymers that mimic various production materials.
  • Advantages: Enables rapid production of high-quality, detailed, and replicable parts. It’s cost-effective for small production runs.
  • Limitations: The durability of molds is limited, and the material choice is narrower compared to other prototyping methods.

Types of Rapid Prototyping

Rapid prototyping, a critical component in the product development process, encompasses various types, each serving a distinct purpose and catering to different phases of product validation and testing. Understanding these types is essential in choosing the most effective approach for a specific project.

Proof-of-Concept

Proof-of-Concept (PoC) prototypes and concept models are the initial steps in the rapid prototyping process. They are used to demonstrate the feasibility of a concept or to visually communicate an idea.

  • Purpose: To validate the basic idea or concept before investing in more detailed development.
  • Common Uses: Often used in the early stages of product design to assess the viability of a new idea or to gather initial user feedback.
  • Materials and Techniques: Typically created using less expensive and quicker methods like 3D printing or basic CNC machining.

Low-fidelity

Low-fidelity prototypes are simplistic representations of the final product, focusing on the basic shape and layout without detailed functionality.

  • Purpose: To refine the basic size, design, and ergonomics of the product.
  • Common Uses: Used in design brainstorming sessions or for initial user interface layout testing.
  • Materials and Techniques: Can be made using simple materials like cardboard, foam, or basic 3D printing techniques.

High-fidelity

High-fidelity prototypes closely resemble the final product in both aesthetics and functionality, often using the same materials as the final product.

  • Purpose: To closely simulate the final product for more accurate user testing and feedback.
  • Common Uses: Ideal for market testing, investor presentations, and finalizing design specifications.
  • Materials and Techniques: Often involves more sophisticated prototyping techniques like advanced 3D printing, CNC machining, or even injection molding for higher volumes.

Looks-Like Prototypes

Looks-Like prototypes focus primarily on the visual and aesthetic aspects of the product.

  • Purpose: To represent the final product’s appearance, color, texture, and overall visual appeal.
  • Common Uses: Used for aesthetic evaluations, marketing purposes, and packaging tests.
  • Materials and Techniques: Utilizes materials and processes that achieve the desired surface finish and color, such as advanced 3D printing and painting.

Works-Like Prototypes

Works-Like prototypes emphasize the functionality of the product without necessarily mimicking its final appearance.

  • Purpose: To test and refine the product’s functional aspects, such as mechanics, electronics, or software.
  • Common Uses: Ideal for internal testing of the product’s functionality and performance.
  • Materials and Techniques: Often made with functionally equivalent materials and components, focusing less on aesthetic qualities.

Engineering Prototypes

Engineering prototypes are developed to test specific engineering aspects like strength, manufacturability, and assembly.

  • Purpose: To ensure the product can be manufactured reliably at scale and meets all engineering requirements.
  • Common Uses: Used to identify and resolve technical challenges in the product design process.
  • Materials and Techniques: Typically involve materials and processes that will be used in the final product, requiring advanced prototyping methods.

Validation Testing and Manufacturing Prototypes

This stage involves prototypes that are almost indistinguishable from the final product, used for final validation and testing before mass production.

  • Purpose: To conduct final tests to ensure the product meets all specifications and regulatory requirements.
  • Common Uses: Used for final user testing, regulatory approvals, and ensuring the product is ready for mass production.
  • Materials and Techniques: Utilizes the same materials, processes, and assembly methods as the final product to accurately simulate mass production.

What is the Role of Software in Rapid Prototyping?

In the realm of rapid prototyping, software plays an instrumental role. It bridges the gap between conceptual designs and tangible prototypes, facilitating various stages of the product development process. From CAD (Computer-Aided Design) software to simulation tools, software technologies are integral to the effectiveness and efficiency of rapid prototyping.

What software is used in rapid prototyping?

Software tools in rapid prototyping vary widely, catering to different aspects of the process. Below are some of the key software names used:

  • CAD Software: Essential for creating detailed 3D models. Examples include:
    • AutoCAD
    • SolidWorks
    • Autodesk Inventor
    • CATIA
    • Fusion 360
  • Simulation Software: Used for virtual testing and analysis. Notable examples are:
    • ANSYS
    • SolidWorks Simulation
    • Autodesk CFD
  • Slicing Software for 3D Printing: Converts 3D models into printable formats. Popular choices include:
    • Cura
    • Simplify3D
    • Slic3r
  • CAM (Computer-Aided Manufacturing) Software: Transforms CAD models into CNC machining instructions. Commonly used ones are:
    • Mastercam
    • Fusion 360
    • GibbsCAM
  • Specialized Rapid Prototyping Software: Tailored for specific rapid prototyping technologies. Examples include:
    • PreForm (for SLA printers)
    • Materialise Magics (for SLS and metal printers)
    • Insight (for FDM printers)

These software tools are fundamental in transforming initial concepts into precise, functional prototypes. CAD software lays the foundation by enabling the creation of intricate 3D designs, which are then further refined and tested through simulation software, ensuring that the prototypes not only look like the intended design but also function as expected.

Slicing software and CAM software translate these designs into instructions that rapid prototyping machines can interpret, bridging the gap between digital designs and physical objects. Specialized rapid prototyping software further tailors this process to the specific needs of different prototyping technologies, optimizing the output for quality and efficiency.

What materials are used in rapid prototyping?

Rapid prototyping, an integral part of the product development process, utilizes a wide range of materials, each offering unique properties and benefits. The choice of material largely depends on the desired characteristics of the prototype, such as durability, flexibility, and aesthetics.

  • Plastics: Commonly used due to their versatility and cost-effectiveness. Examples include ABS, polycarbonate, nylon, and PLA for 3D printing.
  • Metals: Ideal for high-strength and heat-resistant applications. Common metals include aluminum, stainless steel, and titanium, often used in processes like Selective Laser Melting (SLM) and Direct Metal Laser Sintering (DMLS).
  • Resins: Used in Stereolithography (SLA) and Digital Light Processing (DLP), resins are known for producing parts with high detail and smooth finishes.
  • Composites: These materials combine the properties of different materials, such as carbon fiber reinforced plastics, offering increased strength and reduced weight.
  • Ceramics: Suitable for applications requiring heat resistance and high durability.
  • Wax: Often used for investment casting patterns in the manufacturing process.

How is Rapid Prototyping Applied in Different Industries?

Rapid prototyping has found applications across a diverse range of industries, each utilizing the technology to enhance their specific product development processes.

  • Automotive Industry: Used for creating scale models, functional parts for testing, and design verification of components like dashboards, lighting systems, and engine parts.
  • Aerospace Industry: For prototyping parts with complex geometries and lightweight components, often using high-performance materials.
  • Healthcare and Medical Devices: In creating anatomical models for surgical planning, custom prosthetics, and medical devices tailored to individual patient needs.
  • Consumer Electronics: For prototyping cases, buttons, and internal components of devices like smartphones, laptops, and wearables.
  • Architecture and Construction: For creating detailed scale models of buildings, bridges, and other structures for visualization and design verification.
  • Fashion and Apparel: In designing accessories, footwear prototypes, and experimenting with new materials.
  • Education and Research: For creating models and experimental apparatus in various academic fields.
  • Entertainment and Film: In prop making, costume design, and set models for visual effects and practical effects.
  • Robotics and Automation: For prototyping parts of robots, automation machinery, and testing new designs.
  • Sports Equipment Manufacturing: In designing and testing equipment like helmets, rackets, and protective gear.

What are the Limitations of Rapid Prototyping?

While rapid prototyping is a powerful tool in product development, it is not without its limitations. Recognizing these limitations is crucial for effectively leveraging rapid prototyping in various applications.

  • Material Properties: Not all rapid prototyping materials perfectly mimic the properties of production materials. This can lead to discrepancies in performance and aesthetics in the final product.
  • Size Constraints: Many rapid prototyping machines have size limitations, restricting the dimensions of the prototypes that can be created.
  • Surface Finish: Some rapid prototyping techniques may result in rougher surface finishes, requiring additional post-processing for a smoother appearance.
  • Strength and Durability: Prototypes, especially those produced by certain 3D printing methods, may lack the strength and durability of production-grade materials, limiting their use in functional testing.
  • Cost-Effectiveness for Large Volumes: For large production volumes, traditional manufacturing methods might be more cost-effective than rapid prototyping.
  • Limited Materials: While the range of materials for rapid prototyping is expanding, it still doesn’t encompass all the materials used in traditional manufacturing processes.
  • Accuracy and Tolerance: Depending on the technology used, there can be variations in the accuracy and tolerances achieved compared to traditional manufacturing methods.

What are the Costs Associated with Rapid Prototyping?

Rapid prototyping, while invaluable in accelerating the design and testing phases, comes with various cost implications. Understanding these costs is crucial for effective budgeting and decision-making.

  • 3D Printing: Prices can range from a few dollars for small, basic parts made with inexpensive materials like PLA or ABS to several thousand dollars for larger, complex parts using specialized materials.
  • CNC Machining: The cost depends on the complexity of the design, the type of material used, and the machining time required. Simple parts might cost as little as $100, while more complex designs can run into thousands of dollars.
  • Stereolithography (SLA): Prices vary depending on the size and complexity of the part. Smaller parts can cost around $200, while larger and more intricate designs can exceed $2,000.
  • Selective Laser Sintering (SLS): Cost is influenced by the volume of powder used, part size, and complexity. Prices typically start at a few hundred dollars and can reach several thousand for intricate designs.
  • Materials: The choice of material significantly impacts the cost. Standard plastics are generally cheaper, while high-performance materials like titanium or specialized resins can be quite expensive.
  • Labor and Overhead: Labor costs for design, machine setup, and post-processing, along with the overhead costs of running machinery, contribute to the overall cost.
  • Quantity: While prototyping usually involves producing a small number of parts, larger quantities can benefit from economies of scale, reducing the per-unit cost.

What are the Common Mistakes to Avoid in Rapid Prototyping?

Avoiding common pitfalls in rapid prototyping is essential to maximize its benefits. Here’s a bullet list of mistakes to avoid and how to circumvent them:

  • Overlooking Design for Manufacturing (DfM): Failing to consider how a design will be manufactured can lead to costly redesigns. Ensure that designs are optimized for manufacturing from the start.
  • Neglecting Material Properties: Choosing the wrong material can result in prototypes that don’t accurately represent the final product. Select materials that closely match the desired properties.
  • Ignoring Tolerances: Not accounting for manufacturing tolerances can lead to parts that don’t fit together. Design with appropriate tolerances to ensure compatibility.
  • Rushing the Process: Rapid prototyping doesn’t mean rushing through the design process. Take the time to thoroughly test and iterate designs.
  • Focusing Only on Aesthetics: While the appearance of a prototype is important, don’t neglect functional testing to ensure the prototype meets all necessary performance criteria.
  • Underestimating Post-Processing: Finishing techniques like sanding, painting, or sealing can significantly impact the prototype’s look and feel. Factor in the time and cost of post-processing.
  • Inadequate Testing: Failure to adequately test prototypes can lead to missed design flaws. Implement comprehensive testing to validate design assumptions and functionality.

How to Choose the Right Rapid Prototyping Method for Your Project?

Selecting the appropriate rapid prototyping method is pivotal to the success of your project. Here are key factors to guide your decision:

  1. Project Requirements: Understand the specific needs of your project. Consider the prototype’s purpose – whether it’s for form, function, or both. Evaluate whether the prototype is for a one-off presentation, functional testing, or part of a larger product development cycle.
  2. Material Choice: The material properties required for your prototype, such as strength, flexibility, and heat resistance, will influence the selection of the prototyping method. Consider the compatibility of these materials with the chosen prototyping process. Some materials may only be suitable for specific methods like injection molding or resin-based 3D printing.
  3. Precision Needed: Consider the level of detail and accuracy required. Techniques like stereolithography offer high precision, ideal for intricate designs. If your project demands extreme accuracy, for instance in the aerospace or medical industries, this should heavily influence your method choice.
  4. Budget Constraints: Cost is a significant factor. Some methods, like 3D printing, are more cost-effective for small quantities. However, for larger volumes, traditional manufacturing methods like injection molding may become more economical. Consider not just the initial costs but also the long-term financial implications of the chosen method.
  5. Time Constraints: If time is of the essence, methods like fused deposition modeling can rapidly produce prototypes. Evaluate your project timeline to decide if speed is a higher priority than other factors like material choice or cost.
  6. Complexity of Design: Complex designs may require advanced methods like selective laser sintering or multi-material 3D printing. Assess if your design includes intricate details or moving parts, which might not be feasible with simpler methods like CNC machining.
  7. Final Product Material: Choose a prototyping method that mimics the material properties of the final product for accurate testing and feedback. This is crucial for functional prototypes that need to simulate the performance of the final product under real-world conditions.
  8. Scale and Size: Larger prototypes might necessitate methods like CNC machining or large-format 3D printing. Consider the physical dimensions of your prototype and ensure that the chosen method can accommodate its size without compromising on detail or quality.
  9. Environmental Impact and Sustainability: In today’s eco-conscious market, consider the environmental impact of your prototyping method. Some methods, like certain types of 3D printing, can be more sustainable, producing less waste than traditional manufacturing techniques.
  10. User Experience and Feedback: If your prototype is intended for user testing, consider how the method will affect the user experience. For instance, a prototype meant for ergonomic testing should closely mimic the look and feel of the final product.

Conclusion

Rapid prototyping stands as a transformative force in product development, offering unparalleled flexibility and speed. It allows for tangible realizations of concepts, facilitates iterative design, and accelerates the journey from idea to market.

With an understanding of various techniques, materials, and strategic applications, businesses and innovators can harness the full potential of rapid prototyping to drive innovation and efficiency.

FAQs

What are the most common rapid prototyping techniques?

The most prevalent rapid prototyping techniques include 3D Printing (FDM, SLA, SLS), CNC Machining, and Stereolithography. These methods are favored for their speed, accuracy, and the ability to produce complex geometries, making them versatile tools in various industries.

Which type of organizations benefit most from prototyping?

Organizations involved in product development, such as those in the automotive, aerospace, healthcare, and consumer electronics sectors, greatly benefit from rapid prototyping. It aids in expediting the design process, allows for thorough testing and feedback, and enhances the overall quality of the final product.

Share this article

en_US
