In this article, we’ll break down the components and mechanisms that make waterjet cutting machines valuable in the manufacturing industry.
What Is a Waterjet Cutter?

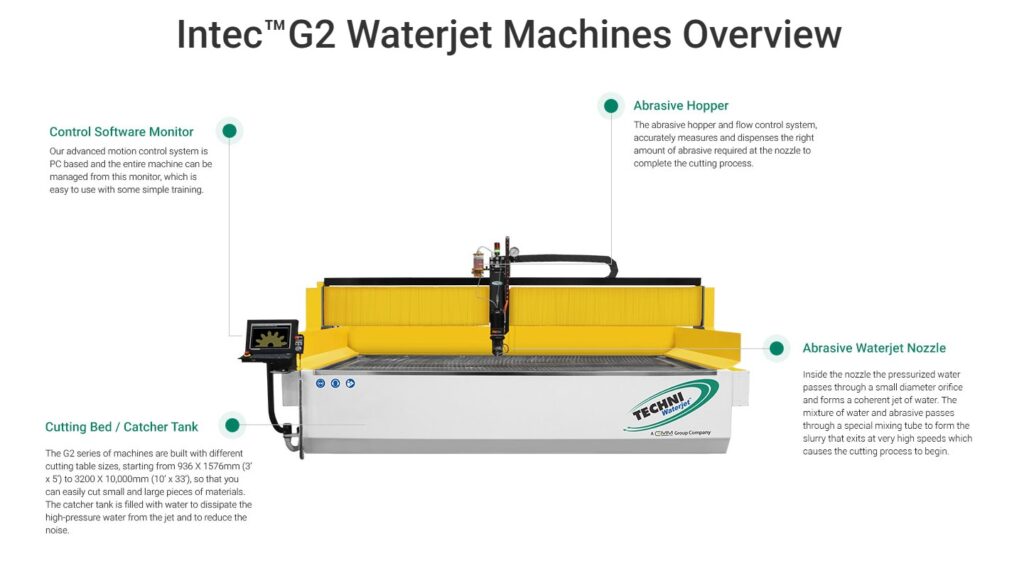

A water jet cutter is an industrial machine that uses a high-pressure water jet, sometimes combined with abrasive substances, to cut materials. The machine consists of several components that work together to achieve precise cuts.
The high-pressure pump generates a powerful water stream, which is directed through a jewel orifice to create a focused jet. This jet is capable of cutting through materials ranging from metal to glass, maintaining edge quality without thermal distortion.
Waterjet machines are equipped with control systems to guide the cutting head, ensuring accuracy and efficiency in the cutting process. This technology allows for intricate designs and complex shapes, making it an invaluable tool in various industries.
What Are the Core Components of a Waterjet Cutting Machine?
Understanding the core components of a waterjet cutting machine like high-pressure pump, cutting head, nozzle and table is crucial for optimizing its performance and maintaining edge quality.
These components work together to deliver the accuracy and efficiency required in manufacturing settings.
High-Pressure Pump
The high-pressure pump is a vital component of a waterjet cutting system, responsible for generating the force needed to cut materials effectively. A water jet pump converts mechanical energy into hydraulic energy, which powers the waterjet. There are three main types of pumps used in waterjet machines: direct drive pumps, intensifier pumps and electric servo pumps.
- Direct Drive Pumps: Direct drive pumps are known for their simplicity and efficiency. They use a crankshaft to drive a series of plungers, which pressurize the water. This type of pump is favored for its ability to deliver a consistent water stream at high pressure, ensuring smooth and precise cuts. Direct drive pumps are often chosen for applications where high speed and accuracy are critical, providing reliable performance with lower maintenance requirements.
- Intensifier Pumps: Intensifier pumps are designed to handle more demanding cutting tasks. They use a hydraulic cylinder to amplify pressure, achieving higher levels than direct drive pumps. This makes them suitable for cutting thicker or harder materials, as they can generate a powerful water stream capable of penetrating tough surfaces. Intensifier pumps are favored for their flexibility and ability to maintain consistent pressure over extended periods, making them ideal for industrial applications that require robust cutting capabilities.
- Electric Servo Pumps: Techni Waterjet is the first water jet pump manufacturer to utilize ”direct servo” technology in an ultrahigh pressure waterjet pump and has developed patented designs to integrate the core technology into their ESP. An electric servo motor is used to directly drive the high-pressure pump, eliminating the need for hydraulic oil and complex hydraulic systems.The hydraulic cylinders are replaced with infinitely controllable servo linear actuators to maximize efficiency making it a more sustainable solution compared to the traditional technologies.
What Are the Components of a Water Jet Pump?
A water jet pump comprises several key components that work in unison to create and maintain the high pressure necessary for cutting:
- Motor: Powers the pump and drives the pistons or plungers.
- Pistons/Plungers: Compress the water to create high pressure.
- Accumulator: Stores pressurized water and regulates flow.
- Check Valve: Prevents backflow and maintains pressure consistency.
- Control System: Manages the pump’s operation and pressure levels.
How Do Different Pumps Affect Waterjet Cutting Performance?
The type of pump used in your waterjet cutting machine can significantly impact its performance and capabilities. Here’s how direct drive pumps, intensifier pumps, and electric servo pumps differ in their operation and effects:
- Direct Drive Pumps: These pumps use a crankshaft mechanism to drive pistons directly, creating high pressure with fewer moving parts. They are known for their efficiency and lower maintenance requirements, making them ideal for applications where consistent pressure and speed are crucial. Direct drive pumps are typically more cost-effective, providing steady performance for medium-duty cutting tasks.
- Intensifier Pumps: Intensifier pumps use hydraulic cylinders to boost pressure, enabling the machine to cut through thicker and more challenging materials. They are preferred for heavy-duty applications due to their ability to maintain high pressure over extended periods. The hydraulic system in intensifier pumps allows for precise control of pressure and flow, enhancing the machine’s versatility and adaptability to various cutting scenarios.
- Electric Servo Pumps: Electric servo pumps use a servo motor to directly drive the high-pressure waterjet system, eliminating the need for hydraulic components. This design offers exceptional energy efficiency, reducing power consumption by up to 60% compared to traditional pumps. They are ideal for a wide range of applications, delivering consistent pressure with minimal noise and easy maintenance. Their precise control and eco-friendly operation make them a versatile and cost-effective choice for modern cutting systems.
Abrasive Delivery Systems
The abrasive delivery system is a critical part of the waterjet cutting machine, enhancing its cutting capabilities. This system introduces abrasive particles, usually garnet, into the water stream, which significantly increases the cutting power of the waterjet.
The abrasives are mixed with high-pressure water in the mixing tube, allowing the waterjet to cut through hard materials such as metal and stone with precision.
The function of the abrasive delivery system in a waterjet cutting machine is to ensure that the abrasive particles are delivered consistently and accurately to the cutting head. This consistency is crucial for maintaining edge quality and ensuring precise cuts. The system typically includes an abrasive hopper, which stores the abrasive material, and a metering device, which regulates the flow of abrasives into the water stream.
Reservoir
The reservoir is a fundamental component of the waterjet cutting machine, serving as the storage unit for the water used in the cutting process. It ensures that there is a constant supply of water available to the high-pressure pump, which is necessary for maintaining the machine’s operational efficiency.
In a waterjet cutting system, the reservoir’s function is to provide a steady flow of water to the pump, which then pressurizes it to create a high-velocity water jet. This high-pressure water stream is essential for cutting through materials with precision and speed. The reservoir helps regulate the water flow, ensuring that the machine operates smoothly and without interruptions.
Accumulator
The accumulator is a vital component of the waterjet cutting machine, playing a crucial role in maintaining consistent water pressure. It acts as a buffer, storing pressurized water and releasing it when needed to ensure a steady flow to the cutting head.
This consistency is essential for achieving high-quality cuts and maintaining the edge quality of the material being worked on.
In a waterjet cutting system, the accumulator helps smooth out any fluctuations in pressure, allowing the high-pressure pump to operate more efficiently. By providing a reservoir of pressurized water, the accumulator reduces the load on the pump, minimizing wear and extending its lifespan. This not only improves the machine’s performance but also reduces maintenance costs over time.
Control Valves
Control valves are essential components in a waterjet cutting machine, responsible for regulating the flow and pressure of the water and abrasive mixture.
They allow you to adjust the cutting speed and force, tailoring the machine’s performance to suit different materials and cutting requirements.
The function of control valves in a waterjet cutting machine is to provide precise control over the waterjet’s operation. By adjusting the valves, you can control the amount of water and abrasive delivered to the cutting head, optimizing the cutting process for different materials. This level of control is crucial for achieving high precision and maintaining the desired cutting speed and quality.
Flow Regulator
The flow regulator is an essential component of the waterjet cutting machine, responsible for controlling the rate at which water and abrasive materials are fed into the cutting head. This regulation is crucial for maintaining consistent cutting pressure and achieving optimal edge quality.
By ensuring the correct flow rate, the flow regulator helps prevent overloading the system and reduces wear on other components.
In a waterjet cutting system, the flow regulator plays a key role in managing the balance between the high-pressure water stream and the abrasive particles. This balance is necessary for precise cutting, as it directly affects the force and efficiency of the waterjet. The regulator can be adjusted to accommodate different materials and thicknesses, providing flexibility and adaptability in cutting operations.
Cutting Head
The cutting head is the component where the high-pressure water stream and abrasive particles converge to perform the cutting action. It is one of the most critical parts of a waterjet cutting machine, as it directly influences the precision and quality of the cuts.
The cutting head contains several subcomponents, including the nozzle, mixing tube, and jewel orifice, each playing a specific role in the cutting process.
The function of the cutting head is to focus the high-pressure water and abrasive mixture into a fine jet capable of slicing through materials. The nozzle design and the quality of the jewel orifice are crucial for maintaining the jet’s focus and intensity, which affects the overall performance of the waterjet system. Proper alignment and maintenance of the cutting head are essential for achieving accurate and clean cuts.
Chiller
The coolant system in a waterjet cutting machine plays a crucial role in maintaining the optimal temperature of the pump during operation. While water itself acts as a natural coolant, additional systems are often employed to manage the heat generated by the high-pressure pump.
This ensures that the pump operates efficiently and prevents overheating, which can lead to component damage or reduced cutting performance.
The chiller functions by circulating coolant fluid through the pump, dissipating heat away from the system. This helps maintain a stable operating environment and prolongs the lifespan of the high-pressure components.
In some waterjet systems, the chiller also includes filters to remove debris and contaminants from the water, further enhancing the machine’s efficiency and performance.
Mixing Chamber
The mixing tube is a vital component of the waterjet cutting head, where high-pressure water and abrasive particles converge to form the cutting jet. The design and condition of the mixing tube are critical to the machine’s cutting performance, as they influence the speed and precision of the water jet.
In a waterjet cutting machine, the mixing tube’s function is to blend the abrasive particles with the high-pressure water stream, creating a focused jet capable of slicing through tough materials.
The mixing tube’s length and diameter can affect the velocity and concentration of the abrasive water jet, impacting the overall efficiency and accuracy of the cutting process.
Focusing Tube
The nozzle is a critical component of the waterjet cutting head, responsible for focusing the high-pressure water stream into a fine jet that can cut through materials. It plays a significant role in determining the precision and quality of the cuts produced by the machine.
The design and condition of the nozzle directly impact the machine’s efficiency and the edge quality of the material being cut.
What Are the Main Types of Focusing Tubes?
There are several types of cutting nozzles used in waterjet cutting machines, each designed for specific applications and materials. Understanding these types and their specifications can help you choose the right nozzle for your cutting needs:
- Standard Nozzles: These nozzles are used for general-purpose cutting tasks and are designed to handle a wide range of materials. They are suitable for applications where precision and speed are essential.
- High-Precision Nozzles: These nozzles are engineered for tasks that require high accuracy and fine detail. They are often used in industries where intricate designs and tight tolerances are necessary, such as aerospace and automotive manufacturing.
- Large Diameter Nozzles: These nozzles are designed for heavy-duty cutting applications, where high flow rates and increased cutting speeds are required. They are ideal for cutting thicker materials or large-scale projects.
What Are the Components of a Cutting Head?
A waterjet cutting head consists of several key components, each contributing to its overall functionality and performance:
- Jewel Orifice: This is the part where the water is initially forced through, creating the high-pressure stream. It’s typically made of hard materials like sapphire or ruby to withstand intense pressure.
- Mixing Chamber: This component combines the water stream with abrasive particles, if used, to enhance cutting capabilities. It ensures a uniform mixture that produces efficient cutting results.
- Body: The main structure that holds all parts together. It is designed to withstand high pressures and maintain the stability of the water jet.
What Material Is Used for Waterjet Cutting Heads?
The materials used for constructing waterjet nozzles cutting heads are chosen based on their durability and ability to withstand the high pressures involved in the cutting process. The primary materials used include:
- Sapphire, Ruby, and diamond: These are common choices for jewel orifices due to their hardness and resistance to wear. They provide excellent durability, ensuring a long service life.
- Tungsten Carbide: Often used in the body of the nozzle for its strength and resistance to abrasion. It can handle the wear and tear associated with high-pressure water and abrasive particles.
- Stainless Steel: Used in some components for its corrosion resistance and strength. Stainless steel can withstand the rigors of constant water exposure and maintain structural integrity.
Orifice
The orifice is a critical component of the waterjet cutting machine, responsible for converting high-pressure water into a focused jet. This small opening is where the magic begins, as it directs the high-pressure water stream through a tiny aperture to create a precise and powerful cutting force.
The function of the orifice in a waterjet cutting machine is to produce a high-velocity jet of water that can penetrate various materials. The size and design of the orifice determine the jet’s intensity and focus, directly impacting the cutting performance and edge quality. A well-designed orifice ensures that the water jet is consistent and powerful, enabling the machine to cut through thick and hard materials with ease.
High-Pressure Tubing
High-pressure tubing is a vital component of the waterjet cutting system, responsible for transporting the high-pressure water from the pump to the cutting head. This tubing must withstand extreme pressures and provide a reliable conduit for the water stream, ensuring that the cutting process is efficient and effective.
The function of high-pressure tubing in a waterjet cutting machine is to maintain the integrity of the water stream as it travels from the pump to the head. The tubing must be able to handle the high pressures generated by the pump and resist wear and tear from the abrasive water. High-quality tubing ensures that the water jet remains consistent and powerful, allowing for precise cuts.
Gantry
The gantry is a fundamental part of a waterjet cutting machine, providing the structural framework that supports and moves the cutting head. It acts as the bridge that spans the working table, allowing the cutting head to travel along the X and Y axes. This movement is crucial for executing precise cuts across the workpiece.
In a waterjet cutting system, the gantry’s function is to facilitate the motion system, enabling the cutting head to position itself accurately over the material being cut. The gantry is equipped with motors and rails that guide its movement, ensuring that the cutting head follows the programmed path with high precision. This component is essential for achieving detailed cuts and maintaining the integrity of the design.
Catcher Tank
The catcher tank is another vital component of a waterjet cutting machine, designed to capture and dissipate the energy of the water stream after it has completed its cutting task. This tank is located beneath the cutting table and is filled with water or abrasive material to absorb the impact of the high-pressure water jet.
The primary function of the catcher tank is to safely manage the spent water stream and abrasive particles, preventing them from causing damage to the surrounding equipment or environment. By effectively containing the cutting byproducts, the catcher tank helps maintain a clean and safe workspace. It also plays a role in reducing noise levels and minimizing splashback, which can be a concern during the cutting process.
Abrasive Hopper
The abrasive hopper is a critical component of a waterjet cutting machine. It stores and dispenses the abrasive material used in the cutting process. Typically made of garnet or other hard minerals, the abrasive is mixed with the high-pressure water stream to enhance the cutting ability of the waterjet. The abrasive hopper is designed to feed the abrasive material consistently into the waterjet system, ensuring smooth and efficient operation.
In a waterjet cutting machine, the abrasive hopper functions by maintaining a steady supply of abrasive particles. The hopper must be designed to prevent clogs and ensure a consistent flow of abrasive material. This is crucial for achieving accurate and clean cuts, especially when working with thick or hard materials.
How Does the Abrasive Metering System Affect Cutting Quality?
The abrasive metering system is responsible for controlling the flow rate of abrasive material into the waterjet system. This system plays a significant role in determining the cutting quality and efficiency of the machine. By regulating the amount of abrasive mixed with the water stream, the metering system can adjust the cutting speed and precision based on the material being processed.
The abrasive metering system impacts cutting quality by ensuring a consistent and optimal flow of abrasive material. This consistency is vital for achieving uniform cuts and maintaining the desired edge quality.
A well-calibrated metering system can prevent issues such as excessive wear on the nozzle and mixing tube, which can result from an uneven abrasive flow. Additionally, it helps reduce the overall consumption of abrasive material, leading to cost savings and reduced environmental impact.
In industrial settings, the ability to fine-tune the abrasive metering system allows operators to tailor the cutting process to specific materials and project requirements.
This flexibility enhances the versatility of the waterjet cutting machine, enabling it to handle a wide range of applications with precision and efficiency. By optimizing the abrasive flow, the metering system contributes to the overall performance and reliability of the waterjet cutting system, making it an indispensable component in achieving high-quality results.
CNC Controller
The CNC (Computer Numerical Control) controller is a vital component of a waterjet cutting machine. It serves as the brain of the operation, managing the entire cutting process by interpreting and executing digital instructions.
The CNC controller allows you to input complex designs and cutting paths, which are then converted into precise movements by the machine’s motion system. This ensures that the water jet cutter can follow intricate patterns with high accuracy.
In a waterjet system, the CNC controller regulates the movement of the cutting heads, adjusting for speed and pressure to suit different materials and thicknesses. This level of control is essential for maintaining the desired edge quality and minimizing material waste. The controller also facilitates automation, enabling the machine to run complex cutting sequences with minimal human intervention.
Cutting Table
The cutting table is another essential component of a waterjet cutting machine. It provides the platform where the material to be cut is placed and secured. The table must be sturdy and precisely aligned to ensure that the cutting process remains stable and accurate. It supports the workpiece during cutting, preventing movement that could compromise the quality of the cut.
In a waterjet cutting system, the cutting table is designed to withstand the intense forces generated by the high-pressure water stream and abrasive particles. It often includes features like a catcher tank or water flow management system to collect used water and abrasives, minimizing mess and facilitating cleanup. Additionally, some tables are equipped with a grid or slat system to support the material and allow debris to fall away from the cutting area, improving cut accuracy and efficiency.
Here’s a quick breakdown of the different types of cutting tables and their functions;
Fixed Cutting Tables:
- Offer a stable surface for precise cutting.
- Ideal for small to medium-sized workpieces.
- Often include a catcher tank to manage used water and abrasive materials.
Rotary Cutting Tables:
- Provide rotational movement for circular or curved cuts.
- Suitable for pipe and tube cutting applications.
- Enhance flexibility for complex cutting tasks.
Gantry-Style Cutting Tables:
- Feature a movable gantry for large workpieces.
- Allow for cutting across a wide area.
- Ideal for industrial applications requiring extensive cutting ranges.
Drainage System
The drainage system is an essential part of a waterjet cutting machine, designed to manage and remove water and debris generated during the cutting process. As the high-pressure water stream interacts with the material, it creates a mixture of water, abrasive particles, and material fragments. The drainage system efficiently collects and channels this mixture away from the cutting area, ensuring that the work environment remains clean and safe.
In a water jet cutting system, the drainage system often includes a catch tank or catcher tank, which captures the used water and abrasive material. This system helps maintain the efficiency of the cutting process by preventing water and debris buildup.
Water Filtration System
The water filtration system is another vital component of a waterjet cutting machine. Its primary function is to maintain the quality of the water used in the cutting process. As water is the main medium for cutting in a water jet cutter, ensuring its purity and quality is crucial for optimal performance. The filtration system removes impurities, particles, and contaminants from the water, preventing them from affecting the precision and efficiency of the cutting process.
In a waterjet cutting system, the filtration system typically includes multiple stages of filtration, each designed to target specific types of impurities. This may involve filters that capture larger particles, as well as finer filters that remove microscopic contaminants. By maintaining clean water, the filtration system protects sensitive components such as the waterjet nozzle, jewel orifice, and mixing tube from wear and tear.
Control Panel
The control panel of a waterjet cutting machine acts as the central command center, where you can manage and monitor the entire cutting process. It provides an interface for operators to input cutting parameters, control the motion system, and adjust settings for different materials and cutting tasks. The control panel typically features a display screen, buttons, and various controls that allow precise adjustments.
In a water jet cutting system, the control panel enables you to set the speed, pressure, and path of the cutting heads, ensuring that the material is cut accurately according to specifications. This is essential for achieving high-quality edge finishes and maintaining the integrity of precision parts. The control panel also allows for real-time monitoring of the cutting process, helping you detect any issues or adjustments needed to optimize performance.
Filter System
The filter system in a waterjet cutting machine is responsible for maintaining the quality of the water used in the cutting process. Water quality is critical to the machine’s performance and the longevity of its components. The filter system removes impurities, particles, and contaminants from the water stream, ensuring that only clean water enters the high-pressure pump and nozzle.
A typical filter system consists of multiple stages, including sediment filters, carbon filters, and finer filtration units that capture microscopic particles. By keeping the water free from debris, the filter system protects sensitive parts like the jewel orifice and mixing tube from wear and damage. This not only prolongs the life of the waterjet machine but also helps maintain consistent cutting performance.
Software
The software in a waterjet cutting machine serves as the brain of the operation. It manages the motion system and translates design files into precise cutting paths for the machine to follow. This software typically includes a user-friendly interface that allows you to input cutting parameters, control the speed and direction of the cutting head, and adjust settings for different materials. With advanced features, the software can optimize cutting sequences to reduce material waste and increase efficiency.
In a water jet cutting system, the software is essential for achieving high-quality cuts and maintaining edge quality. It allows you to create complex shapes and designs by controlling the movement of the cutting heads with high accuracy. The software also integrates with CAD/CAM systems, enabling you to import design files directly and streamline the cutting process.
Safety Systems
Safety systems are integral to the operation of a waterjet cutting machine, ensuring the protection of operators and the longevity of the equipment. These systems are designed to monitor and control the machine’s operation, preventing accidents and minimizing risks associated with high-pressure water and abrasive materials.
A typical safety system in a waterjet machine includes emergency stop buttons, pressure sensors, and interlocks that prevent the machine from operating under unsafe conditions. These features allow you to halt the machine’s operation quickly if an issue arises, protecting both the operator and the machine from potential damage. Additionally, safety systems often include shields and barriers to contain the high-pressure water jet and abrasive particles, reducing the risk of injury from flying debris.
Abrasive Removal System
The abrasive removal system in a waterjet cutting machine is responsible for managing the waste generated during the cutting process. When a water jet cutter operates, it creates a mixture of water, abrasive particles, and material residue. This mixture, commonly referred to as sludge, can accumulate at the bottom of the catcher tank. If not properly managed, this sludge can hinder the machine’s performance and lead to maintenance issues.
A well-designed abrasive removal system effectively separates and removes the waste material from the waterjet machine. This system typically includes pumps and filters that continuously extract sludge, ensuring that the waterjet cutting system remains clean and functional. By keeping the machine free from buildup, the removal system helps maintain the water quality and overall performance of the cutting machine.
Diagonal Cut Compensation / ±60° Bevel Cutting Head
The diagonal cut compensation or bevel cutting head is a specialized feature that enhances the versatility of a waterjet cutting machine. This cutting head allows the machine to make angled cuts and bevels, providing greater flexibility in cutting complex shapes and designs. By adjusting the angle of the cutting head, you can achieve precise cuts that meet specific design requirements.
In a water jet system, diagonal cut compensation is achieved through a motion system that controls the movement of the cutting heads. The bevel cutting head can be tilted to various angles, enabling the machine to produce cuts with precise edge quality. This capability is particularly beneficial for industries that require intricate cuts, such as aerospace and automotive manufacturing.
2D and 3D Height Sensors
Height sensors in a water jet cutter play a crucial role in maintaining the accuracy and quality of cuts. These sensors measure the distance between the cutting head and the material surface, adjusting the height to ensure precise cutting. In waterjet cutting, accuracy is essential for achieving the desired edge quality and minimizing material waste.
2D height sensors are typically used for flat surfaces, where the cutting head needs to maintain a consistent distance from the material. They provide feedback to the control system, allowing for real-time adjustments during the cutting process. This ensures that the water stream maintains optimal pressure and flow, enhancing the cutting performance.
3D height sensors, on the other hand, are more advanced and capable of handling complex surfaces with varying elevations. These sensors use laser technology to create a three-dimensional map of the material, enabling the waterjet machine to adapt to changes in surface height. This capability is particularly important when working with uneven materials or intricate designs, where maintaining a constant cutting distance is critical for achieving precise results.
Positioning Laser
The positioning laser is another essential component of a waterjet cutting machine, enhancing its precision and ease of use. This laser projects a visible beam onto the material, marking the exact path where the cut will occur. This visual guide helps operators align the material correctly before starting the cutting process, ensuring that cuts are made accurately and according to design specifications.
In a waterjet system, the positioning laser works in conjunction with the control system to facilitate accurate placement and orientation of the material. This is particularly useful when working with complex designs or when multiple pieces need to be cut from a single sheet. By providing a clear reference point, the positioning laser helps reduce errors and increases productivity.
Water Level Regulator
The water level regulator is a critical component of a water jet cutting machine, responsible for maintaining the optimal water level within the catch tank. This device ensures that the water used in the cutting process remains at a consistent level, which is crucial for maintaining cutting accuracy and preventing machine damage.
In a waterjet system, the cutting head releases a high-pressure water stream mixed with abrasive particles, such as garnet, to cut through materials. The catch tank collects the water and abrasive mixture, allowing for the recirculation and reuse of water. The water level regulator continuously monitors the water level in the tank and adjusts it as needed to ensure optimal performance.
Maintaining the correct water level is important for several reasons:
- Consistent Cutting Quality: By ensuring that the water pressure remains stable, the regulator helps produce cuts with high edge quality and precision. This is especially crucial when working with delicate or intricate designs that require accuracy.
- Machine Longevity: Proper water level management reduces wear and tear on the pump and other components, such as the jewel orifice and mixing tube. This helps extend the lifespan of the waterjet machine, minimizing maintenance costs and downtime.
- Safety: Preventing overflow and maintaining a stable water level reduces the risk of accidents and ensures a safer working environment for operators.
What Are the Latest Advancements in Waterjet Cutting Machines?
Waterjet cutting technology has been advancing rapidly, with machines now featuring cutting-edge capabilities that significantly enhance performance and flexibility. These innovations are transforming how industries utilize waterjet systems for various applications, from precision cutting of metals and ceramics to complex shapes in aerospace and automotive manufacturing.
3D and Bevel Cutting Heads
The introduction of 3D and bevel cutting heads in water jet cutting machines represents a significant step forward in manufacturing technology. These cutting heads allow for more intricate and precise cuts, which are essential for creating complex parts and components that meet exacting specifications. Unlike traditional flat cuts, 3D and bevel cutting heads enable the cutting of materials at various angles, adding a new dimension to the versatility of water jet cutting systems.
These cutting heads are particularly beneficial in industries that demand high precision, such as aerospace, automotive, and architectural design. They allow manufacturers to produce parts with complex geometries, including bevels and angles that were previously difficult to achieve with standard water jet cutters. This capability enhances the flexibility of waterjet systems, enabling them to perform a broader range of tasks and meet diverse customer needs.
What Are the Benefits of Using a 3D Cutting Head?
Using a 3D cutting head in a waterjet machine offers several key benefits that enhance the overall cutting process. Here are some advantages:
- Enhanced Precision: 3D cutting heads improve the precision of cuts, allowing for complex geometries and intricate designs. This precision ensures high edge quality and reduces the likelihood of errors, resulting in fewer rejected parts.
- Increased Versatility: The ability to cut at various angles and depths makes the 3D cutting head suitable for a wide range of materials and applications. Whether working with metals, glass, or composites, you can achieve the desired cuts without switching tools.
- Reduced Secondary Processing: With the capability to produce finished parts directly, 3D cutting heads minimize the need for additional machining or finishing processes. This not only saves time but also reduces production costs and material waste.
- Improved Efficiency: By handling complex cuts in a single pass, 3D cutting heads enhance the efficiency of the water jet system. This results in faster production times and increased throughput, which is crucial for meeting tight deadlines and high-volume orders.
- Lower Tooling Costs: Traditional cutting methods often require specific tooling for different shapes and angles. A 3D cutting head eliminates this need, reducing tooling costs and simplifying the setup process.
Positioning Lasers and Height Sensors
Positioning lasers and height sensors are crucial components in modern waterjet cutting machines. They play a vital role in ensuring precision and accuracy, which are critical in industries where even minor deviations can lead to significant errors and increased costs. Positioning lasers help in aligning the waterjet cutter precisely over the material, ensuring that the cut starts at the exact point and follows the intended path. This accuracy is essential for maintaining edge quality and producing parts that meet strict specifications.
Height sensors, on the other hand, adjust the distance between the cutting head and the workpiece in real time. This capability is especially important when dealing with uneven surfaces or materials with varying thicknesses. By maintaining an optimal distance, height sensors ensure consistent cutting performance and prevent potential damage to the nozzle or material. This technology enhances the waterjet system’s usability, making it easier for operators to achieve the desired results with minimal manual adjustments.
Efficiency Enhancements
Advancements in waterjet cutting technology have also focused on improving efficiency and reducing operational costs. Two key areas of development are energy-efficient pumps and recyclable abrasives, both of which aim to minimize environmental impact while enhancing performance.
- Energy-efficient Pumps: Energy-efficient pumps, such as electric servo pumps, play a critical role in reducing the energy consumption of waterjet machines. These pumps are designed to deliver high-pressure water streams with less energy, making them more cost-effective and environmentally friendly. By optimizing the pressure and flow rate, these pumps ensure that the waterjet system operates at peak performance without excessive energy use.
- Recyclable Abrasives: Recyclable abrasives offer another avenue for improving the sustainability of waterjet cutting systems. Traditional abrasive materials, such as garnet, are often used once and then discarded, contributing to waste. However, advancements in abrasive recycling technologies allow you to reuse these materials multiple times, reducing the overall consumption and disposal costs. This not only lowers expenses but also supports environmental conservation efforts by minimizing the depletion of natural resources.
Conclusion
With waterjet machines, you can easily cut through a range of materials easily, from metals to plastics. Having proper knowledge of how the components work is essential if you intend to achieve maximum efficiency and effectiveness.
Also, recent innovation in waterjet technology the 3D and bevel cutting heads have further increased the capability of waterjet machines by a large margin, meaning it can be helpful in applications that require more complex and intricate cuts.
Waterjet cutting machines are used to cut a wide range of materials, from metals to plastics, using high pressure water jets that can be infused with abrasive materials for enhanced cutting power. Understanding the components and mechanics of these systems is essential for maximizing their efficiency and effectiveness.
Frequently Asked Questions
What is the Mechanism of Cutting in Waterjet Machining?
Waterjet machining employs a highly pressurized stream of water, often mixed with abrasive particles, to cut through materials. The process begins with a high pressure pump that increases the water pressure to an extremely high level, usually between 30,000 and 90,000 psi. This high pressure water is then directed through a small orifice or jewel orifice, creating a focused jet stream that travels at high speed.
