Last Updated on At the heart of the waterjet cutting technology lies the garnet, a natural mineral known for its hardness and durability, making it the abrasive of choice for waterjet cutting applications.
This article will delve into the mechanics of waterjet cutting and explore why garnet stands out from other abrasives.
Waterjet cutting employs a high-pressure stream of water, often combined with an abrasive substance, to cut through a wide range of materials.
Garnet, with its exceptional hardness and optimal grain shape, has become the preferred abrasive for this process, offering unmatched cutting capabilities.
Why Use Garnet in Waterjet Cutting?
In waterjet cutting, the choice of abrasive determines the efficiency, precision, and cost-effectiveness of the cutting process. Garnet, with its unique physical and chemical properties, stands out as the premier choice for this application.
Its significance in waterjet cutting cannot be overstated, offering a harmonious blend of hardness, density, and recyclability that other abrasives struggle to match.
What are the Physical and Chemical Properties of Garnet?
Garnet, particularly almandine garnet, boasts a hardness that is unrivaled among natural abrasives, ranking between 7.5 and 8.5 on the Mohs scale. This exceptional hardness enables it to cut through tough materials like stainless steel, glass, and composite materials with ease.
Moreover, garnet’s angular particle shape enhances its cutting ability, allowing for precise and clean cuts with minimal kerf.
The chemical stability of garnet ensures that it does not react adversely with the materials it cuts or the water stream used in the cutting process.
This stability, coupled with garnet’s high specific density, allows for quicker settling of particles, reducing wear on the waterjet cutting machine’s components and extending nozzle life.
What are Comparative Advantages of Garnet Over Other Abrasives
Garnet offers several advantages over traditional abrasives such as silicon carbide, slag, and even sand.
Its superior hardness and cutting speed allow for faster processing times, while its particle shape and size consistency contribute to exceptional edge quality and surface finish.
From an environmental perspective, garnet is safer to handle and generates less dust during cutting, minimizing health risks associated with airborne particles.
The recyclability of garnet is a further advantage, offering significant cost savings and environmental benefits.
Unlike one-time use abrasives, garnet can be recycled multiple times without a significant loss in performance, reducing both the material cost and the impact on landfill disposal.
How to Choose the Right Garnet Abrasive?
Selecting the appropriate garnet abrasive for waterjet cutting involves understanding the specific requirements of the cutting application, including the material to be cut, the desired cutting speed, and the level of precision required.

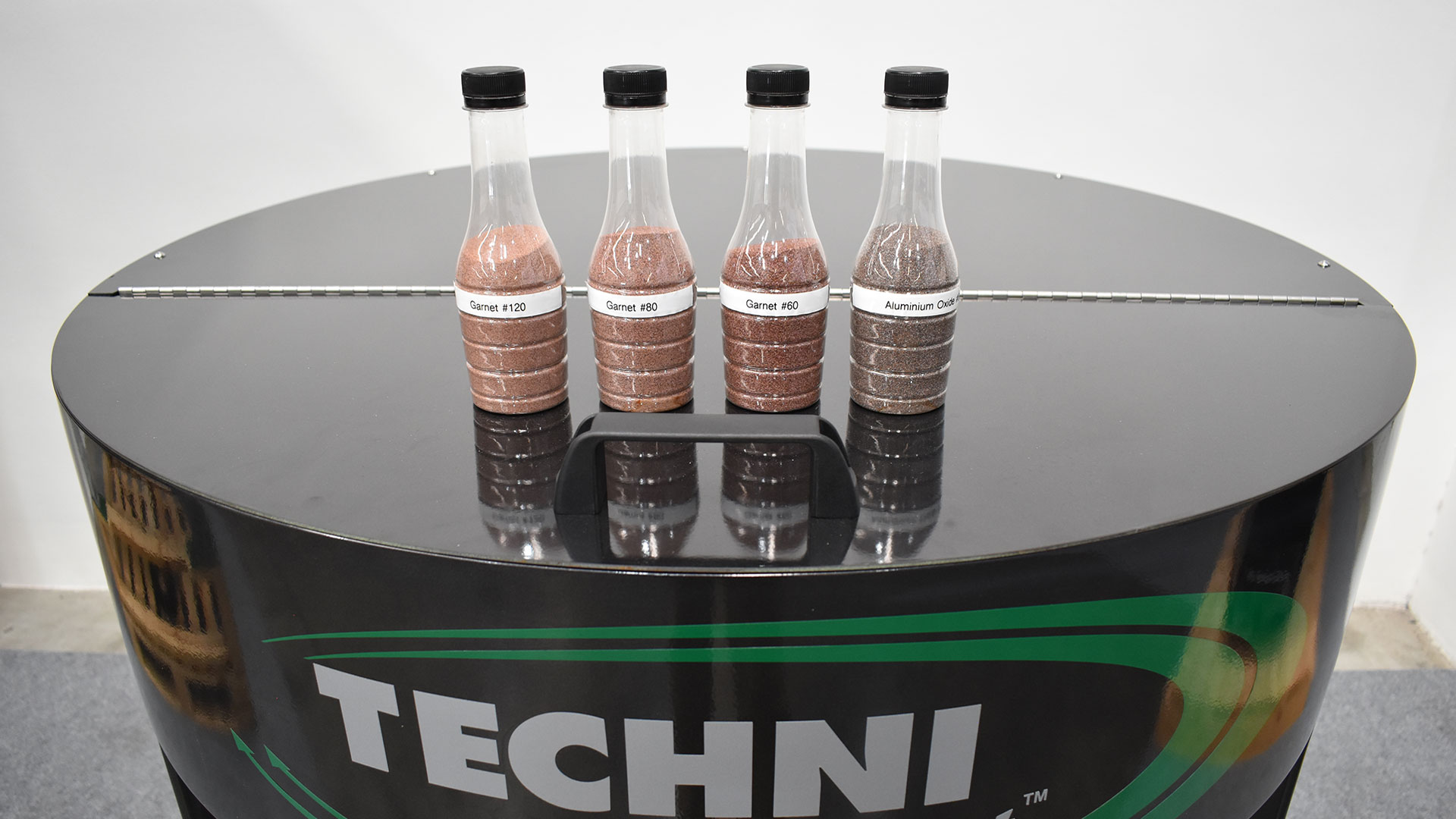

Understanding Mesh Grades and What They Signify
Mesh size is a critical factor in selecting garnet abrasive, as it directly affects the cutting precision and efficiency.
The term “mesh size” refers to the number of holes in a screen per inch, with higher numbers indicating finer particles. For waterjet cutting, garnet abrasives typically range from 50 mesh for coarse cutting to 120 mesh for fine precision cutting.
Smaller mesh sizes (higher numbers) produce finer abrasives, ideal for detailed work on delicate materials, achieving a superior surface finish with minimal material waste.
Conversely, larger mesh sizes (lower numbers) are better suited for cutting through thicker or harder materials, offering faster cutting speeds but at the potential cost of precision.
Attributes to Consider
- Hardness: Essential for cutting through tough materials.
- Density: Affects the force at which garnet particles hit the cutting surface.
- Toughness: Determines the abrasive’s resistance to shattering on impact.
- Particle Shape: Influences the cutting action and the quality of the cut edge.
- Recyclability and environmental impact: A key consideration for operational cost efficiency and sustainablity.
Alluvial vs. Rock Garnet: Which is Better?
Alluvial garnet, found in riverbeds, is naturally rounded and typically has a higher purity than rock garnet.
This makes it ideal for applications requiring a smooth surface finish.
Rock garnet, mined from hard rock deposits, is more angular and is preferred for its aggressive cutting action and durability.
The choice between the two depends on the specific requirements of the cutting application, with alluvial garnet being preferable for most applications, and rock garnet being used for particular and tougher, more demanding cuts.
However, rock garnet is much harsher on consumables like focusing tubes, abrasive feeders and abrasive hose.
Here are a few tips :
- For thick, tough materials like stainless steel or titanium: Choose a coarser, rock garnet.
- For precise cuts on delicate materials like glass or ceramics: Opt for a finer, alluvial garnet.
The Importance of Garnet Purity and Quality
The effectiveness of garnet in waterjet cutting is also heavily influenced by its purity and quality.
Impurities in the garnet, such as dust, clay, or other minerals, can significantly impair the cutting process, leading to reduced cutting speed, poorer edge quality, and increased wear on the waterjet machine.
How to Assess Garnet Quality?
The best way is to half fill a small plastic water bottle with abrasive, add some water and shake it up. If the water turns dirty it has impurities such as dust, clay, or other minerals. If the water stays mainly clear its of good quality.
What are the Environmental and Economic Benefits of Using Garnet?
Garnet, beyond its effectiveness as an abrasive, shines through its eco-friendliness, safety, cost implications, and especially its recyclability, creating a harmonious balance between environmental sustainability and economic efficiency.
Eco-friendliness and Safety
Garnet’s environmental credentials are impeccable. Unlike some other abrasives that contain toxic materials or lead to hazardous dust, garnet is chemically inert and free of silica, making it safe for operators and the environment alike.
ts use significantly reduces the generation of airborne particles, thus lowering the risk of respiratory issues among workers and minimizing the impact on surrounding ecosystems.
This safety aspect, coupled with its natural abundance, positions garnet as a preferred choice for businesses aiming to maintain high environmental standards.
Cost Implications: Initial Cost vs. Long-term Savings
While the initial purchase price of garnet may be higher than some alternatives, its longevity and recyclability offer substantial long-term savings.
Garnet’s exceptional hardness and durability mean that it can be reused multiple times in waterjet cutting processes without losing its effectiveness, reducing the need for frequent replacements.
Moreover, the efficiency of garnet in achieving precise and clean cuts reduces material wastage, further enhancing its cost-effectiveness. This attribute makes garnet not only an environmentally sound choice but also an economically wise investment for industries.
The Recyclability of Garnet and Its Benefits
One of the standout features of garnet is its recyclability, which has a dual benefit: it considerably lessens environmental impact and lowers the cost per use.
Recycled garnet particles retain their cutting capabilities, which means they can be reused in several cutting operations before disposal. This recyclability reduces the demand for mining and processing new garnet, thereby conserving resources and reducing the carbon footprint associated with production and transportation.
Furthermore, the ability to recycle garnet means less waste heads to landfills, making it an exemplary model of sustainable industry practices.
What are Application Areas of Garnet in Waterjet Cutting?
Garnet’s versatility makes it suitable for a wide array of materials, marking it as the abrasive of choice for diverse waterjet cutting applications. Its hardness, cutting speed, and the quality of the finish it provides enable precision cutting across various industries.
Materials Suitable for Cutting with Garnet-Abrasive Waterjets
The materials below highlight the broad applicability of garnet in waterjet cutting, capable of delivering high precision and minimal edge distortion across different textures and densities.
- Metals: Stainless steel, aluminum, titanium, and copper
- Stone and Tiles: Marble, granite, and ceramics
- Glass: Including toughened safety glass and decorative glass panels
- Composites: Carbon fiber and fiberglass
- Plastics and Rubber: For intricate shapes and sizes
Industry-specific Applications
- Aerospace: Fabricating components from titanium and aluminum alloys
- Manufacturing: Cutting custom parts for machinery, vehicles, and equipment
- Construction and Architecture: Shaping stone for buildings and creating intricate tile designs
- Art and Design: Crafting detailed artworks and decorative elements from glass and metals
- Shipbuilding: Cutting steel plates and parts for marine vessels
What are Technical Aspects of Waterjet Cutting with Garnet?
Understanding the technical nuances of operating waterjet cutting machines with garnet is essential for achieving optimal performance and safety.
Let’s start with the machine setup.
Waterjet Cutting Machine Setup for Garnet
Setting up a waterjet cutting machine involves configuring it to utilize garnet effectively. This setup is crucial for ensuring that the waterjet can cut through various materials with high precision and efficiency.
The key factors include ensuring the garnet is of high quality and the right mesh size, adjusting the water pressure to the appropriate level, and calibrating the machine’s cutting speed.
Safety Precautions When Handling Garnet and Operating Waterjet Cutters
Safety is paramount when handling garnet and operating waterjet cutters.
It’s essential to wear protective gear, including gloves and goggles, to prevent direct contact with the garnet, which can be abrasive.
Additionally, ensuring the waterjet cutting machine is properly maintained and operated can prevent accidents and improve the machine’s lifespan.
Maintenance and Troubleshooting
Regular maintenance tasks are essential for the smooth operation of waterjet cutting machines. A maintenance checklist includes:
- Checking the cutting head for worn orifice or focusing tube
- Checking the garnet feed to ensure consistent flow and to prevent blockages
- Monitoring water pressure and quality for optimal performance
Common troubleshooting tips address issues like uneven cutting, slow cutting speed, and machine downtime. Regularly consulting the manufacturer’s guidelines can prevent these problems and extend the machine’s life.
Conclusion
Garnet with its unique combination of hardness, durability, and recyclability, stands as a cornerstone in the waterjet cutting technology landscape. The insights gathered throughout this discussion not only highlight the technical and operational excellence achievable with garnet but also underscore its environmental and economic advantages.
Frequently Asked Questions (FAQs)
1. Can garnet be reused in waterjet cutting?
Yes, garnet can be reused in waterjet cutting operations. Its exceptional hardness and toughness allow it to maintain its cutting capabilities over multiple uses. However, it does lose some of its sharp edges, and some are smashed into finer partials that are discarded. Typically, recycled garnet is mixed with new garnet.
2. How does waterjet cutting with garnet compare to laser cutting?
Waterjet cutting with garnet offers distinct advantages over laser cutting, particularly in terms of versatility and material integrity. Waterjet cutting can process a wider variety of materials, including metals, stones, and composites, without inducing thermal stress or altering the material’s inherent properties. While laser cutting is renowned for its precision and speed in certain applications, waterjet cutting excels in its ability to cut thicker materials and provide a smooth, burr-free finish.
3. What are the limitations of waterjet cutting with garnet?
While waterjet cutting with garnet is highly versatile and efficient, it does have limitations. The process can be slower and more costly than other cutting methods when working with very thick materials or requiring extremely high precision. Additionally, the initial setup and ongoing maintenance of waterjet cutting machines necessitate a significant investment in both time and resources.
